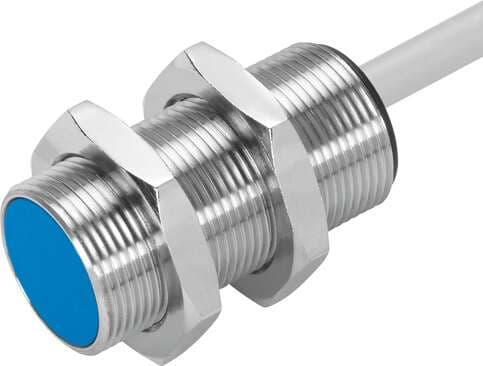

150456 Festo Proximity Sensors

Product Details

• Symbol
  00991704
• Assured operating distance
  6.48 mm
• Ambient temperature
  -25 °C ... 70 °C
• Max. output current
  200 mA
• Electrical connection
  3-wire Cable
• Reverse polarity protection
  for all electrical connections
• Mounting type
  Flush
• Contamination level
  3
• Surge resistance
  0.8 kV
• Conforms to standard
  EN 60947-5-2
• Rated operating distance
  8 mm
• Switching element function
  N/O contact
• Residual ripple
  +/- 20 %
• Material of cable sheath
  TPE-U(PUR)
• Tightening torque
  20 Nm
• Ambient temperature with flexible cable installation
  -5 °C ... 70 °C
• Selection of sensor version
  Standard
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Reduction factors
  Aluminum = 0.35 Steel St 37 = 1.0
• Voltage drop
  ≤ 2 V
Idle current
≤ 10 mA
Size
M18
Switching status indication
LED yellow
Electrical output
NPN
Type code
SIEH
CE marking (see declaration of conformity)
As per EU EMC directive
Repetition accuracy
0.4 mm
Hysteresis
≤ 0.88 mm
Short-circuit protection
Pulsed
Type of mounting
With lock nut
Product weight
108 g
Note on materials
Free of copper and PTFE RoHS-compliant
Switching output
NPN
Max. switching frequency
1500 Hz
DC operating voltage range
10 V ... 30 V
Cable length
2.5 m
Housing material
Brass Nickel-plated
Degree of protection
IP67
Selection of additional sensor information
With increased switching distance
