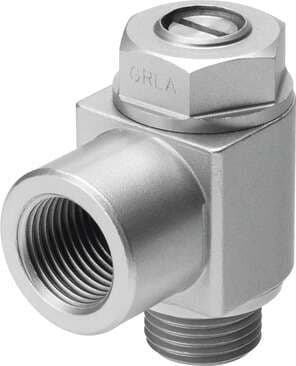

151165 Festo Stop Valves (non-return)
Part#:151165
Alt. Part#:GRLA-1/8-B
Manufacturer:Festo
Category:Stop Valves (non-return)
Product Lifecycle:Active
Product description
one-way flow control valve GRLA-1/8-B Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: G1/8, Pneumatic connection, port 2: G1/8, Adjusting element: Slotted head screw, Mounting type: Threaded
Product Details
- Valve function Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction 340 l/min
- Symbol 00991452
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials RoHS-compliant
- Pneumatic connection 2 G1/8
- Ambient temperature -10 °C ... 60 °C
- Standard flow rate in non-return direction at 6 -> 0 bar 470 l/min ... 760 l/min
- Max. tightening torque 6 Nm
- Material of adjusting screw Brass
- Pneumatic connection 1 G1/8
- Type code GRLA
- Maritime classification See certificate
- Type of mounting Screw-in
- Adjusting element Slotted screw
- Operating pressure for entire temperature range 0.3 bar ... 10 bar
- Product weight 28 g
- Swivel joint material Die-cast zinc
- Standard nominal flow rate in non-return direction 260 l/min ... 420 l/min
- Standard flow rate in flow control direction 6 -> 0 bar 615 l/min
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -10 °C ... 60 °C
- Mounting position Any
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Material of screwed trunnion Wrought aluminum alloy
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
