151555 Festo Stop Valves (non-return)

151555 on Powermatic Associates
Festo

Part#:151555

Alt. Part#:GRLA-3/8-NPT-B

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

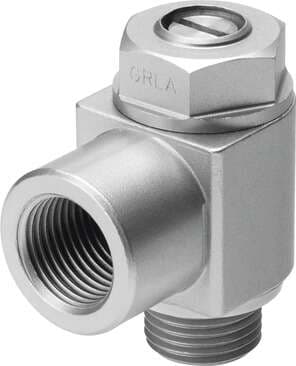

one-way flow control valve GRLA-3/8-NPT-B Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: 3/8 NPT, Pneumatic connection, port 2: 3/8 NPT, Adjusting element: Slotted head screw, Mounting type: Threaded

Product Details

  • Pneumatic connection 1
    3/8 NPT
  • Ambient temperature
    -10 °C ... 60 °C
  • Hollow bolt material
    Wrought aluminum alloy
  • Swivel joint material
    Die-cast zinc
  • Valve function
    Exhaust air flow control non-return function
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 2
    3/8 NPT
  • Type of mounting
    Screw-in
  • Symbol
    00991452
  • Note on materials
    RoHS-compliant
  • Type code
    GRLA
  • Adjusting element
    Slotted screw
  • Seals material
    NBR
  • Nut material
    Wrought aluminum alloy
  • Operating pressure for entire temperature range
    0.3 bar ... 10 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Material of adjusting screw
    Brass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
