153011 Festo Pneumatic Fittings

153011 on Powermatic Associates
Festo

Part#:153011

Alt. Part#:QS-1/2-16

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

10 in stock

Jun 14, 2026

Product description

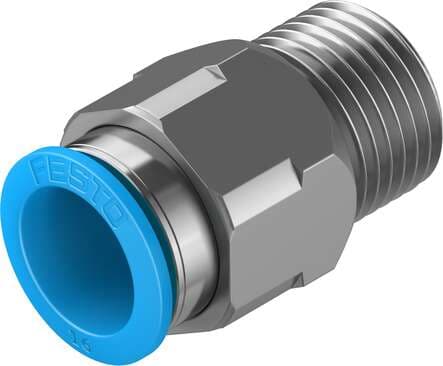

push-in fitting QS-1/2-16 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Product Details

  • Type of seal on screwed trunnion
    Coating
  • Operating pressure for entire temperature range
    -0.95 bar ... 6 bar
  • Maritime classification
    See certificate
  • Pack size
    1
  • Type code
    QS
  • Temperature-dependent operating pressure
    -0.95 bar ... 14 bar
  • Product weight
    63 g
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 16 mm
  • Releasing ring material
    POM
  • Size
    Standard
  • Nominal width
    13 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Housing material
    Brass Nickel-plated
  • Material of tube retaining claw
    High-alloy stainless steel
  • Mounting position
    Any
  • Design
    Push-pull principle
  • Ambient temperature
    -10 °C ... 80 °C
  • Releasing ring color
    Blue
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 1
    External thread R1/2
  • Note on materials
    RoHS-compliant
  • Material of tubing seal
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 153011 on Powermatic Associates is $9.73. Order now.
