153297 Festo Actuator Accessories

153297 on Powermatic Associates
Festo

Part#:153297

Alt. Part#:HE-3-1/4-1/4

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

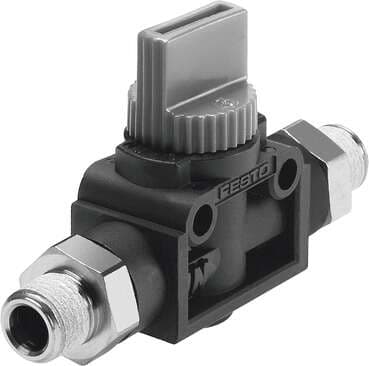

shut-off valve HE-3-1/4-1/4 Valve function: 3/2 bistable, Pneumatic connection, port 1: R1/4, Pneumatic connection, port 2: R1/4, Type of actuation: manual, Mounting type: (* Direct mounting via through-holes, * Direct mounting via threads, * Optional)

Product Details

  • Flow direction
    Non-reversible
  • Selection of additional function
    With exhaust function
  • Standard nominal flow rate
    625.5 l/min
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    RoHS-compliant
  • Valve function
    3/2, bistable
  • Actuation type
    Manual
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Type code
    HE
  • Pneumatic connection 1
    R1/4
  • Ambient temperature
    0 °C ... 60 °C
  • Exhaust air function
    Without flow control option
  • Design
    Piston gate valve
  • Temperature of medium
    0 °C ... 60 °C
  • Product weight
    58 g
  • Nominal width
    4.1 mm
  • Type of mounting
    Optionally: Direct fastening via thread
  • Type of control
    Direct
  • Material of screwed trunnion
    Brass, nickel-plated
  • Operating pressure
    -0.95 bar ... 10 bar
  • Pneumatic connection 2
    R1/4
  • Housing material
    PBT-reinforced
  • Sealing principle
    Soft
  • Symbol
    00997329
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Seals material
    NBR
  • Pneumatic connection 3
    Not ducted

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
