153469 Festo Stop Valves (non-return)

153469 on Powermatic Associates
Festo

Part#:153469

Alt. Part#:HE-2-QS-10

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

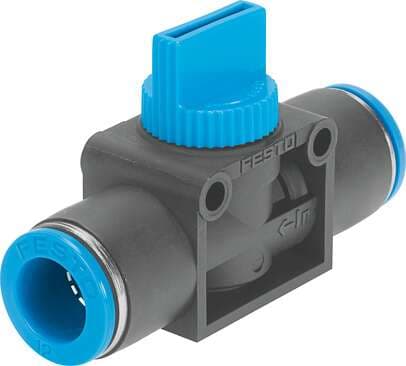

shut-off valve HE-2-QS-10 Valve function: 2/2 bistable, Pneumatic connection, port 1: QS-10, Pneumatic connection, port 2: QS-10, Type of actuation: manual, Mounting type: (* Direct mounting via through-holes, * Line installation, * Optional)

Product Details

  • Operating pressure
    -0.95 bar ... 10 bar
  • Actuation type
    Manual
  • Pneumatic connection 1
    QS-10
  • Nominal width
    4.7 mm
  • Sealing principle
    Soft
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    RoHS-compliant
  • Type code
    HE
  • Pneumatic connection 2
    QS-10
  • Housing material
    PBT-reinforced
  • Temperature of medium
    0 °C ... 60 °C
  • Valve function
    2/2 bistable
  • Type of mounting
    Optionally: Line installation
  • Standard nominal flow rate
    752.4 l/min
  • Mounting position
    Any
  • Flow direction
    Non-reversible
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    0 °C ... 60 °C
  • Design
    Piston gate valve
  • Symbol
    00997328
  • Product weight
    41 g
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Type of control
    Direct
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
