153472 Festo Actuator Accessories
Part#:153472
Alt. Part#:HE-2-1/4-QS-8
Manufacturer:Festo
Category:Actuator Accessories
Product Lifecycle:Active
Product description

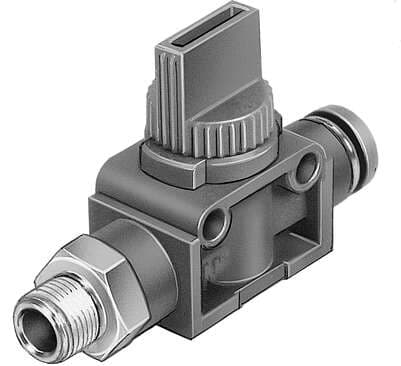

shut-off valve HE-2-1/4-QS-8 Valve function: 2/2 bistable, Pneumatic connection, port 1: R1/4, Pneumatic connection, port 2: QS-8, Type of actuation: manual, Mounting type: (* Direct mounting via through-holes, * Direct mounting via threads, * Optional)
Product Details
- Type code HE
- Actuation type Manual
- Standard nominal flow rate 423.9 l/min
- Mounting position Any
- Symbol 00997328
- Product weight 36 g
- Nominal width 3.5 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Type of control Direct
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Material of screwed trunnion Brass, nickel-plated
- Valve function 2/2 bistable
- Type of mounting Optionally: Direct fastening via thread
- Ambient temperature 0 °C ... 60 °C
- Sealing principle Soft
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium 0 °C ... 60 °C
- Pneumatic connection 1 R1/4
- Note on materials RoHS-compliant
- Operating pressure -0.95 bar ... 10 bar
- Pneumatic connection 2 QS-8
- Housing material PBT-reinforced
- Design Piston gate valve
- Flow direction Non-reversible
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
