153479 Festo Actuator Accessories

Name: 153479
Brand: Festo

Part#:153479

Alt. Part#:HE-3-1/8-QS-6

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

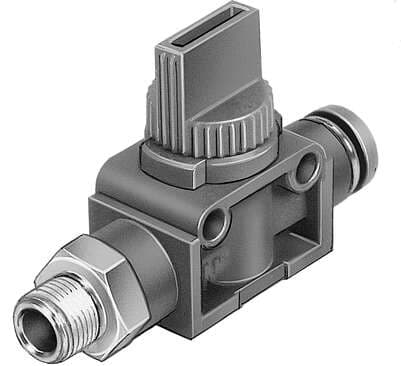

shut-off valve HE-3-1/8-QS-6 Valve function: 3/2 bistable, Pneumatic connection, port 1: R1/8, Pneumatic connection, port 2: QS-6, Type of actuation: manual, Mounting type: (* Direct mounting via through-holes, * Direct mounting via threads, * Optional)

Product Details

Type code
HE
Selection of additional function
With exhaust function
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Note on materials
RoHS-compliant
Valve function
3/2, bistable
Type of mounting
Optionally: Direct fastening via thread
Sealing principle
Soft
Flow direction
Non-reversible
Seals material
NBR
Pneumatic connection 1
R1/8
Standard nominal flow rate
279.9 l/min
Housing material
PBT-reinforced
Design
Piston gate valve
Symbol
00997329
Product weight
29 g
Operating pressure
-0.95 bar ... 10 bar
Pneumatic connection 2
QS-6
Actuation type
Manual
Ambient temperature
0 °C ... 60 °C

Mounting position

Any

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pneumatic connection 3

Not ducted

Material of screwed trunnion

Brass, nickel-plated

Nominal width

3.2 mm

Exhaust air function

Without flow control option

Type of control

Direct

Temperature of medium

0 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

153479 Related Documents

153479 DataSheet.pdf
