153529 Festo Pneumatic Fittings
Part#:153529
Alt. Part#:QSRL-M5-4
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

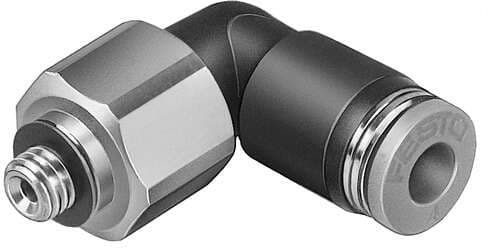

push-in L-fitting, rotatable QSRL-M5-4 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 1,4 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1
Product Details
- Nominal width 1.4 mm
- Mounting position Any
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Nominal tightening torque 1.33 Nm
- Releasing ring color Blue
- Material of tubing seal NBR
- Type code QSRL
- Max. rotational speed 500 1/min
- Max. tightening torque 1.5 Nm
- Tolerance for nominal tightening torque ± 20%
- Pneumatic connection 1 External thread M5
- Maritime classification See certificate
- Pack size 1
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media Operation with oil lubrication possible
- Note on materials RoHS-compliant
- Releasing ring material POM
- Design Push-pull principle
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Max. radial torque 0.006 Nm
- Product weight 13 g
- Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm
- Size Standard
- Type of seal on screwed trunnion Sealing ring
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- Ambient temperature 0 °C ... 60 °C
- Housing material PBT
- Material of tube retaining claw High-alloy stainless steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
