153655 Festo Pneumatic Fittings

153655 on Powermatic Associates
Festo

Part#:153655

Alt. Part#:QSL-5/16H-U

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

push-in L-connector QSL-5/16H-U with push-in sleeve. Size: Standard, Nominal size: 4,7 mm, Assembly position: Any, Container size: 1, Design structure: Push/pull principle

Product Details

  • Design
    Push-pull principle
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 5/16"
  • Material of tubing seal
    NBR
  • Nominal width
    4.7 mm
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Maritime classification
    See certificate
  • Pack size
    1
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection 1
    Push-in sleeve QS-5/16"
  • Releasing ring material
    POM
  • Size
    Standard
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Releasing ring color
    Gray
  • Material of tube retaining claw
    High-alloy stainless steel
  • Type code
    QSL
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Product weight
    5.7 g
  • Housing material
    PBT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

153655 Related Documents

153655 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

564817 on Powermatic Associates

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock
190651 on Powermatic Associates

190651

Festo

push-in fitting QSF-1/4-12-B female thread with external hexagon. Size: Standard, Nominal size: 11 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

8 in stock
567779 on Powermatic Associates

567779

Festo

push-in connector QB-3/8H-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,256 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

3 in stock
153134 on Powermatic Associates

153134

Festo

push-in T-connector QST-6-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

8 in stock
564801 on Powermatic Associates

564801

Festo

push-in connector QB-5/16T-1/4-U reducing. Size: Standard, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

8 in stock
2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock

Manufacturer warranty

153655 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 153655 with other Pneumatic Fittings products

Design

Information on operating ...

Pneumatic connection 2

Material of tubing seal

Nominal width

Ambient temperature

Note on materials

Maritime classification

Pack size

Operating medium

Selected product

153655
Backordered
153655
Festo

push-in L-connector QSL-5/16H-U with push-in sleeve. Size: Standard, Nominal size: 4,7 mm, Assembly ...

DesignPush-pull principle

Information on operating and pilot mediaOperation with oil lubricati...

Pneumatic connection 2for pneumatic tubing outside...

Material of tubing sealNBR

Nominal width4.7 mm

Ambient temperature-10 °C ... 60 °C

Note on materialsRoHS-compliant

Maritime classificationSee certificate

Pack size1

Operating mediumCompressed air as per ISO 85...

190771
3 in stock
190771
Festo

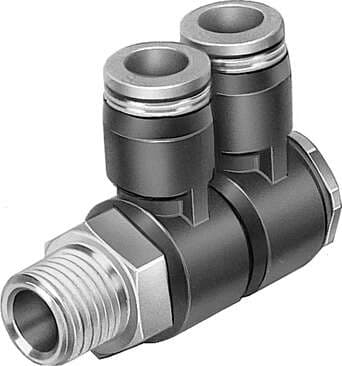

multiple distributor QSLV2-1/4-3/8-U 2-fold, 360° orientable. Size: Standard, Nominal size: 5,1 mm, ...
