153957 Festo Pneumatic Fittings
Part#:153957
Alt. Part#:QSR-1/4-5/16-U
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

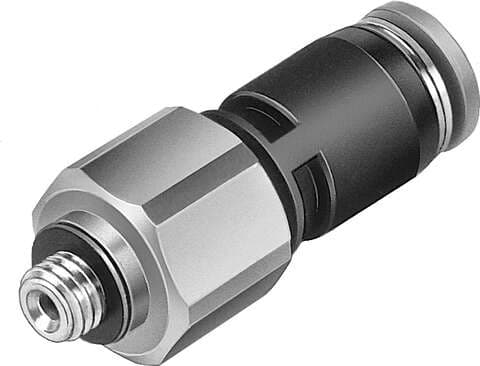

rotary push-in fitting QSR-1/4-5/16-U 360° rotatable, with ball bearing, male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1
Product Details
- Nominal width 5 mm
- Information on operating and pilot media Operation with oil lubrication possible
- Pneumatic connection 2 for pneumatic tubing outside diameter 5/16"
- Material of tubing seal NBR
- Mounting position Any
- Type of seal on screwed trunnion Coating
- Size Standard
- Type code QSR
- Maritime classification See certificate
- Pack size 1
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Product weight 31 g
- Releasing ring color Gray
- Material of tube retaining claw High-alloy stainless steel
- Design Push-pull principle
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Pneumatic connection 1 external thread 1/4 NPT
- Releasing ring material POM
- Operating pressure for entire temperature range -0.95 bar ... 10 bar
- Ambient temperature -10 °C ... 60 °C
- Note on materials RoHS-compliant
- Max. tightening torque 14 Nm
- Housing material PBT
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
