156583 Festo Pneumatic Actuators
Part#:156583
Alt. Part#:ADVU-100-50-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

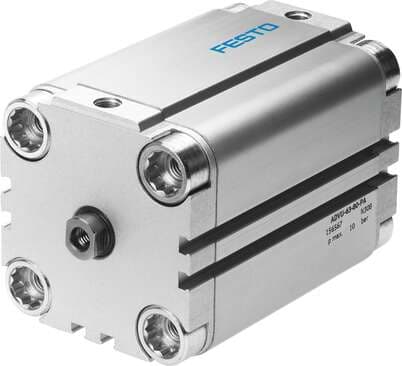

compact cylinder ADVU-100-50-P-A For proximity sensing, piston-rod end with female thread. Stroke: 50 mm, Piston diameter: 100 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: double-acting
Product Details
- Type code ADVU
- Design Piston Piston rod
- Mounting position Any
- Position sensing For proximity sensor
- Piston diameter 100 mm
- Piston rod end Internal thread
- Ambient temperature -20 °C ... 80 °C
- Theoretical force at 6 bar, advancing 4712 N
- Additional moving mass per 10 mm stroke 38 g
- Piston rod material High-alloy steel
- Stroke 50 mm
- Mode of operation Double-acting
- Symbol 00991217
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Impact energy in the end positions 1 J
- Additional weight per 10 mm stroke 177 g
- Cover material Wrought aluminum alloy
- Cushioning Elastic cushioning rings/pads at both ends
- Operating pressure 0.6 bar ... 10 bar
- Theoretical force at 6 bar, retracting 4418 N
- Type of mounting Optionally: With accessories
- Material of dynamic seals NBR TPE-U(PU)
- Variants Piston rod at one end
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Moving mass at 0 mm stroke 614 g
- Pneumatic connection G1/4
- Material of cylinder barrel Wrought aluminum alloy
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Basic weight with 0 mm stroke 2797 g
- Flange screws material Steel, galvanized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
