156674 Festo Pneumatic Actuators

156674 on Powermatic Associates
Festo

Part#:156674

Alt. Part#:ADVULQ-12-15-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

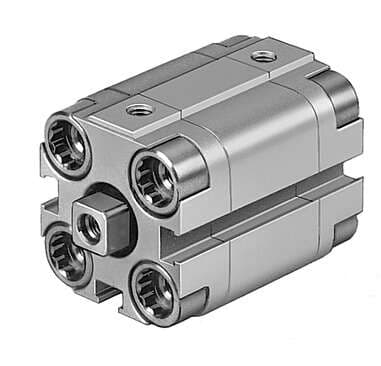

compact cylinder ADVULQ-12-15-P-A For proximity sensing. Secured against rotation by means of square piston rod. Piston-rod end with female thread. Stroke: 15 mm, Piston diameter: 12 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assemb

Product Details

  • Stroke
    15 mm
  • Position sensing
    For proximity sensor
  • Operating pressure
    1.3 bar ... 10 bar
  • Impact energy in the end positions
    0.07 J
  • Cover material
    Wrought aluminum alloy
  • Material of cylinder barrel
    Wrought aluminum alloy
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Piston rod end
    Internal thread
  • Variants
    Piston rod at one end
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Moving mass at 0 mm stroke
    8 g
  • Pneumatic connection
    M5
  • Material of dynamic seals
    NBR TPE-U(PU)
  • Type code
    ADVULQ
  • Mode of operation
    Double-acting
  • Symbol
    00991217
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, advancing
    68 N
  • Design
    Piston Piston rod
  • Protection against torsion/guide
    Square piston rod
  • Ambient temperature
    -20 °C ... 80 °C
  • Additional weight per 10 mm stroke
    15 g
  • Flange screws material
    High-alloy stainless steel
  • Piston rod material
    High-alloy stainless steel
  • Piston diameter
    12 mm
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Theoretical force at 6 bar, retracting
    51 N
  • Basic weight with 0 mm stroke
    87 g
  • Additional moving mass per 10 mm stroke
    2 g
  • Type of mounting
    Optionally: With accessories

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

156674 Related Documents

156674 DataSheet.pdf
