156715 Festo Pneumatic Actuators
Part#:156715
Alt. Part#:ADVULQ-40-20-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

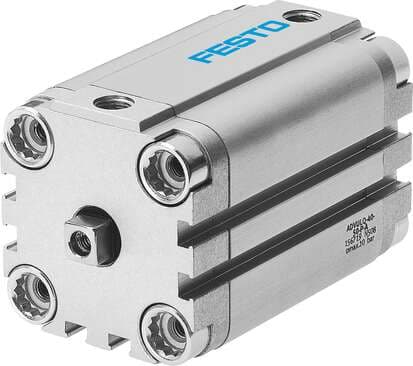

compact cylinder ADVULQ-40-20-P-A For proximity sensing. Secured against rotation by means of square piston rod. Piston-rod end with female thread. Stroke: 20 mm, Piston diameter: 40 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assemb
Product Details
- Type code ADVULQ
- Position sensing For proximity sensor
- Design Piston Piston rod
- Symbol 00991217
- Stroke 20 mm
- Mounting position Any
- Mode of operation Double-acting
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Theoretical force at 6 bar, retracting 686 N
- Pneumatic connection G1/8
- Piston rod material High-alloy steel
- Piston diameter 40 mm
- Piston rod end Internal thread
- Protection against torsion/guide Square piston rod
- Ambient temperature -20 °C ... 80 °C
- Theoretical force at 6 bar, advancing 754 N
- Additional moving mass per 10 mm stroke 9 g
- Material of dynamic seals NBR TPE-U(PU)
- Operating pressure 0.8 bar ... 10 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Basic weight with 0 mm stroke 433 g
- Flange screws material Steel, galvanized
- Cushioning Elastic cushioning rings/pads at both ends
- Variants Piston rod at one end
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Moving mass at 0 mm stroke 63 g
- Type of mounting Optionally: With accessories
- Cover material Wrought aluminum alloy
- Impact energy in the end positions 0.52 J
- Additional weight per 10 mm stroke 59 g
- Material of cylinder barrel Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
