156767 Festo Pneumatic Actuators
Part#:156767
Alt. Part#:ADVULQ-16-15-A-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

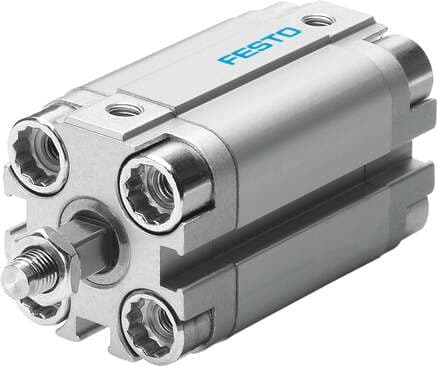

compact cylinder ADVULQ-16-15-A-P-A For proximity sensing. Secured against rotation by means of square piston rod. Stroke: 15 mm, Piston diameter: 16 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operati
Product Details
- Cushioning Elastic cushioning rings/pads at both ends
- Piston rod end External thread
- Stroke 15 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Additional weight per 10 mm stroke 15 g
- Pneumatic connection M5
- Piston rod material High-alloy stainless steel
- Piston diameter 16 mm
- Mounting position Any
- Design Piston Piston rod
- Protection against torsion/guide Square piston rod
- Ambient temperature -20 °C ... 80 °C
- Theoretical force at 6 bar, advancing 121 N
- Type of mounting Optionally: With accessories
- Cover material Wrought aluminum alloy
- Mode of operation Double-acting
- Variants Piston rod at one end
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type code ADVULQ
- Position sensing For proximity sensor
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Theoretical force at 6 bar, retracting 90 N
- Basic weight with 0 mm stroke 89 g
- Material of dynamic seals NBR TPE-U(PU)
- Symbol 00991217
- Operating pressure 1.3 bar ... 10 bar
- Impact energy in the end positions 0.1 J
- Moving mass at 0 mm stroke 12 g
- Additional moving mass per 10 mm stroke 4 g
- Flange screws material High-alloy stainless steel
- Material of cylinder barrel Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
