156908 Festo Pneumatic Actuators
Part#:156908
Alt. Part#:ADVUL-63-40-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

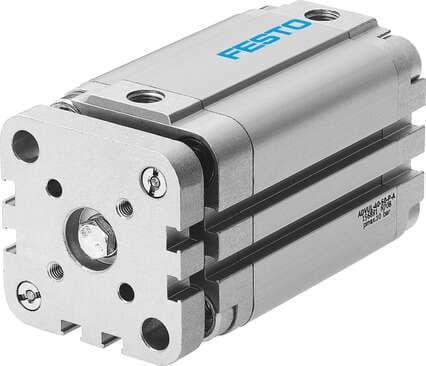

compact cylinder ADVUL-63-40-P-A For proximity sensing. Piston rod secured against rotation by means of guide rod and yoke plate. Stroke: 40 mm, Piston diameter: 63 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any,
Product Details
- Type code ADVUL
- Symbol 00991737
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Cushioning Elastic cushioning rings/pads at both ends
- Protection against torsion/guide Guide rod with yoke
- Operating pressure 1 bar ... 10 bar
- Ambient temperature -20 °C ... 80 °C
- Theoretical force at 6 bar, retracting 1750 N
- Flange screws material Steel, galvanized
- Design Piston Piston rod
- Variants Piston rod at one end
- Theoretical force at 6 bar, advancing 1870 N
- Material of cylinder barrel Wrought aluminum alloy
- Piston diameter 63 mm
- Position sensing For proximity sensor
- Mode of operation Double-acting
- Impact energy in the end positions 0.7 J
- Type of mounting Optionally: With accessories
- Piston rod material High-alloy steel
- Stroke 40 mm
- Mounting position Any
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection G1/8
- Material of dynamic seals NBR TPE-U(PU)
- Cover material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
