156976 Festo Pneumatic Actuators
Part#:156976
Alt. Part#:AEVU-12-5-A-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

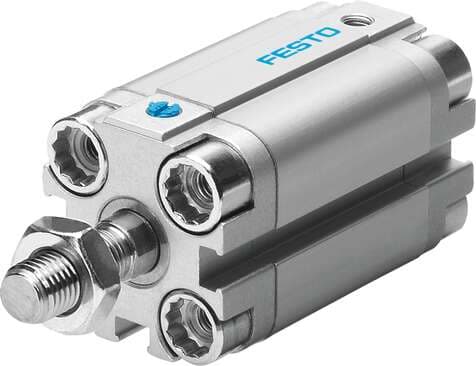

compact cylinder AEVU-12-5-A-P-A For proximity sensing, piston-rod end with male thread. Stroke: 5 mm, Piston diameter: 12 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: (* single-acting, * pus
Product Details
- Cushioning Elastic cushioning rings/pads at both ends
- Design Piston Piston rod
- Piston diameter 12 mm
- Piston rod end External thread
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Basic weight with 0 mm stroke 87 g
- Material of dynamic seals NBR TPE-U(PU)
- Type code AEVU
- Position sensing For proximity sensor
- Operating pressure 1.5 bar ... 10 bar
- Impact energy in the end positions 0.07 J
- Additional moving mass per 10 mm stroke 2 g
- Mounting position Any
- Symbol 00991729
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Theoretical force at 6 bar, advancing 59 N
- Type of mounting Optionally: With accessories
- Stroke 5 mm
- Mode of operation Single-acting Pushing
- Variants Piston rod at one end
- Ambient temperature -20 °C ... 80 °C
- Moving mass at 0 mm stroke 8 g
- Pneumatic connection M5
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Additional weight per 10 mm stroke 15 g
- Flange screws material High-alloy stainless steel
- Material of cylinder barrel Wrought aluminum alloy
- Piston rod material High-alloy stainless steel
- Cover material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
