1574640 Festo Servo Motors

Name: 1574640
Brand: Festo

Part#:1574640

Alt. Part#:EMMS-AS-140-S-HV-RS-S1

Manufacturer:Festo

Category:Servo Motors

Product Lifecycle:Active

Product description

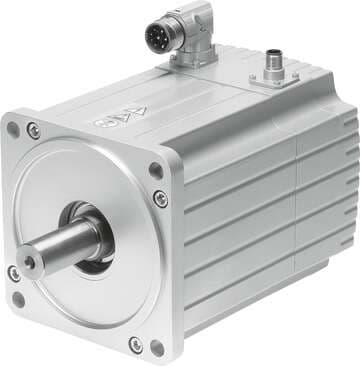

servo motor EMMS-AS-140-S-HV-RS-S1 Without gear unit. Ambient temperature: -10 - 40 °C, Storage temperature: -20 - 60 °C, Relative air humidity: 0 - 90 %, Conforms to standard: IEC 60034, Insulation protection class: F

Product Details

Rotor position sensor interface
EnDat® 22
Insulation protection class
F
Type of winding switch
Star inside
Rating class according to EN 60034-1
S1
Degree of protection
IP65
Permissible radial shaft load
780 N
Note on materials
RoHS-compliant
Rotor position sensor resolution
18 bit
Motor nominal current
5.23 A
Relative air humidity
0 - 90 %
Peak torque
27 Nm
Permissible axial shaft load
200 N
Product weight
9600 g
Number of pole pairs
6
Rotor position sensor measuring principle
Inductive
Temperature monitoring
PTC resistor
Phase-phase winding resistance
1.6 Ohm
Peak current
24.4 A
CE marking (see declaration of conformity)
As per EU EMC directive As per EU low voltage directive
Certification
RCM compliance mark c UL us - Recognized (OL)

Nominal torque

7.7 Nm

Electrical connection technology

Plug

Type code

EMMS-AS

Max. rotational speed

4510 1/min

Motor nominal power

3140 W

Voltage constant, phase-to-phase

88.71 mVmin

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Ambient temperature

-10 °C ... 40 °C

Stall torque

11.08 Nm

MTTFd, subcomponent

152 years, rotor position sensor

Rotor position sensor

Absolute encoder, single-turn

Nominal rotary speed

3900 1/min

Motor constants

1.47 Nm/A

DC nominal voltage

565 V

Winding inductance phase-phase

9.01 mH

Storage temperature

-20 °C ... 60 °C

Total output inertia moment

8.189 kgcm²

MTTF, subcomponent

76 years, rotor position sensor

Conforms to standard

IEC 60034

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1574640 Related Documents

1574640 DataSheet.pdf

Manufacturer warranty

1574640 Festo
