159621 Festo Compressed Air Preparation Units

159621 on Powermatic Associates
Festo

Part#:159621

Alt. Part#:LOE-1/4-D-MINI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

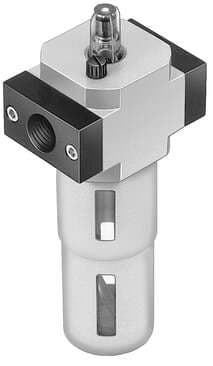

lubricator LOE-1/4-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

Product Details

  • Size
    Mini
  • Mounting position
    Vertical +/- 5°
  • Minimum flow rate for lubricator function
    3 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G¼
  • Maritime classification
    See certificate
  • Design
    Proportional standard oil mist lubricator
  • Operating pressure
    0 bar ... 16 bar
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Product weight
    270 g
  • Type of mounting
    With accessories
  • Type code
    LOE
  • Max. oil capacity
    45 cm³
  • Standard nominal flow rate
    2300 l/min
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
  • Note on materials
    RoHS-compliant
  • Series
    D
  • Bowl guard
    Metal bowl guard
  • Storage temperature
    -10 °C ... 60 °C
  • Ambient temperature
    -10 °C ... 60 °C
  • Material of bowl
    PC
  • Symbol
    00991532
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Pneumatic connection 1
    G1/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

159621 Related Documents

159621 DataSheet.pdf
