161111 Festo Pneumatic Valves Accessories
Part#:161111
Alt. Part#:NAW-1/8-02-VDMA-VL
Manufacturer:Festo
Category:Pneumatic Valves Accessories
Product Lifecycle:Active
Product description

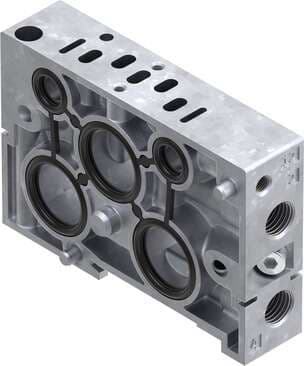

manifold sub-base NAW-1/8-02-VDMA-VL Connections at side. Width: 18 mm, Based on the standard: ISO 15407-1, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium: Lubricated operation possible (subs
Product Details
- Width 18 mm
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 2 G1/8
- Material of sub-base Die-cast aluminum
- Pneumatic connection 4 G1/8
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot air port 14 M5
- Based on norm ISO 15407-1
- Product weight 130 g
- Type code NAW
- Pilot air port 12 M5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
161111 Related Documents
Similar products from: Festo Pneumatic Valves Accessories
Manufacturer warranty
161111 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 161111 with other Pneumatic Valves Accessories products
Width
Information on operating ...
Pneumatic connection 2
Material of sub-base
Pneumatic connection 4
Operating medium
Pilot air port 14
Based on norm
Product weight
Type code
Selected product
161111
Festo
manifold sub-base NAW-1/8-02-VDMA-VL Connections at side. Width: 18 mm, Based on the standard: ISO 1...
Width18 mm
Information on operating and pilot mediaOperation with oil lubricati...
Pneumatic connection 2G1/8
Material of sub-baseDie-cast aluminum
Pneumatic connection 4G1/8
Operating mediumCompressed air as per ISO 85...
Pilot air port 14M5
Based on normISO 15407-1
Product weight130 g
Type codeNAW
540171
Festo
vertical pressure supply plate VABF-S4-1-P1A3-G14 For valve terminals VTSA and VTSA-F, standard port...
Width26 mm
Information on operating and pilot mediaOperation with oil lubricati...
Pneumatic connection 2-
Material of sub-base-
Pneumatic connection 4-
Operating mediumCompressed air as per ISO 85...
Pilot air port 14-
Based on normISO 15407-2
Product weight191 g
Type codeVABF
573440
Festo
manifold rail VABM-L1-10HW-G18-10-GR Grid dimension: 10,5 mm, Assembly position: Any, Max. number of...
Width-
Information on operating and pilot media-
Pneumatic connection 2M7
Material of sub-base-
Pneumatic connection 4M7
Operating medium-
Pilot air port 14-
Based on norm-
Product weight616 g
Type codeVABM
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Accessories for pneumatic valves are elements that improve the performance of systems using compressed air. They allow for accurate control of actuators and consist of components like pressure relief valves and regulators. These accessories play a vital role in ensuring safety, managing flow rate, and guaranteeing the dependable functioning of pneumatic systems.
