161299 Festo Pneumatic Actuators

161299 on Powermatic Associates
Festo

Part#:161299

Alt. Part#:DZF-50-125-A-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

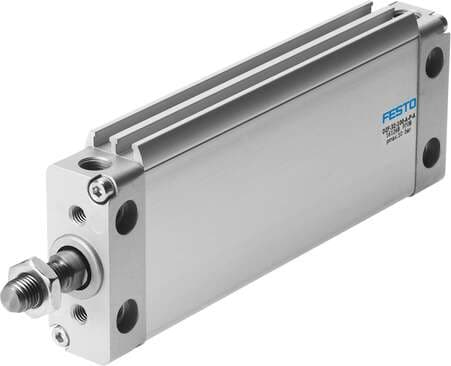

flat cylinder DZF-50-125-A-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 125 mm, Piston diameter: (* 50 mm, * Equivalent diameter),

Product Details

  • Max. angle of rotation of the piston rod +/-
    0.5 deg
  • Position sensing
    For proximity sensor
  • Ambient temperature
    -20 °C ... 80 °C
  • Theoretical force at 6 bar, advancing
    1178 N
  • Additional moving mass per 10 mm stroke
    25 g
  • Cover material
    Wrought aluminum alloy
  • Piston rod material
    High-alloy steel
  • Stroke
    125 mm
  • Mounting position
    Any
  • Design
    Piston Piston rod
  • Operating pressure
    0.1 MPa ... 1 MPa
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Additional weight per 10 mm stroke
    64 g
  • Pneumatic connection
    G1/4
  • Type code
    DZF
  • Symbol
    00991217
  • Max. torque for protection against rotation
    1.2 Nm
  • Moving mass at 0 mm stroke
    219 g
  • Seals material
    NBR TPE-U(PU)
  • Piston diameter
    50 mm Equivalent diameter
  • Mode of operation
    Double-acting
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Theoretical force at 6 bar, retracting
    990 N
  • Basic weight with 0 mm stroke
    854 g
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Protection against torsion/guide
    Oval piston
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Aluminum Smooth anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
