162588 Festo Compressed Air Preparation Units

162588 on Powermatic Associates
Festo

Part#:162588

Alt. Part#:LR-3/4-D-7-MAXI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

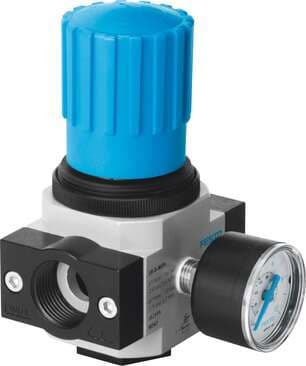

pressure regulator LR-3/4-D-7-MAXI With pressure gauge, working pressure up to 7 bar. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: Piloted piston regulator

Product Details

  • Series
    D
  • Mounting position
    Any
  • Size
    Maxi
  • Design
    Pilot-controlled piston control valve
  • Operating pressure
    0 bar ... 16 bar
  • Max. pressure hysteresis
    0.4 bar
  • Type of mounting
    Front panel mounting With accessories
  • Material of sub-base
    Die-cast zinc
  • Maritime classification
    See certificate
  • Symbol
    00991558
  • Standard nominal flow rate
    12000 l/min
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Pneumatic connection 1
    G3/4
  • Seals material
    NBR
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Pressure regulation range
    0.5 bar ... 7 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    G3/4
  • Type code
    LR
  • Actuator lock
    Rotary knob with detent
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    1200 g
  • Note on materials
    RoHS-compliant
  • Pressure gauge
    with pressure gauge
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
