162592 Festo Compressed Air Preparation Units
Part#:162592
Alt. Part#:LR-3/8-D-O-MINI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

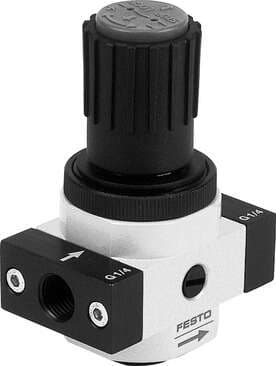

pressure regulator LR-3/8-D-O-MINI With threaded connection plate, without pressure gauge Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator
Product Details
- Operating pressure 1 bar ... 16 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting Front panel mounting With accessories
- Seals material NBR
- Maritime classification See certificate
- Mounting position Any
- Pressure gauge G1/8 prepared
- Max. pressure hysteresis 0.2 bar
- Ambient temperature -10 °C ... 60 °C
- Product weight 300 g
- Material of sub-base Die-cast zinc
- Size Mini
- Actuator lock Rotary knob with detent
- Symbol 00991540
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G3/8
- Note on materials Free of copper and PTFE RoHS-compliant
- Series D
- Controller function Outlet pressure constant With secondary exhausting
- Pressure regulation range 0.5 bar ... 12 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Pneumatic connection 2 G3/8
- Type code LR
- Design Directly controlled diaphragm regulator
- Standard nominal flow rate 1700 l/min
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Housing material Die-cast zinc
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
