162602 Festo Compressed Air Preparation Units
Part#:162602
Alt. Part#:LR-1/2-D-7-O-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
pressure regulator LR-1/2-D-7-O-MIDI With threaded connection plate, without pressure gauge Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator
Product Details
- Size Midi
- Actuator lock Rotary knob with detent
- Operating pressure 0 bar ... 16 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Product weight 660 g
- Type code LR
- Design Directly controlled diaphragm regulator
- Pressure regulation range 0.5 bar ... 7 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Type of mounting Front panel mounting With accessories
- Pressure gauge G1/4 prepared
- Standard nominal flow rate 4000 l/min
- Pneumatic connection 1 G1/2
- Note on materials Free of copper and PTFE RoHS-compliant
- Maritime classification See certificate
- Mounting position Any
- Controller function Outlet pressure constant With secondary exhausting
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Material of sub-base Die-cast zinc
- Series D
- Symbol 00991540
- Max. pressure hysteresis 0.2 bar
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 2 G1/2
- Housing material Die-cast zinc
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
162602 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
162602 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 162602 with other Compressed Air Preparation Units products
Size
Actuator lock
Operating pressure
Operating medium
Ambient temperature
Product weight
Type code
Design
Pressure regulation range
Air quality class at the ...
Selected product
162602
Festo
pressure regulator LR-1/2-D-7-O-MIDI With threaded connection plate, without pressure gauge Size: Mi...
SizeMidi
Actuator lockRotary knob with detent
Operating pressure0 bar ... 16 bar
Operating mediumCompressed air as per ISO 85...
Ambient temperature-10 °C ... 60 °C
Product weight660 g
Type codeLR
DesignDirectly controlled diaphrag...
Pressure regulation range0.5 bar ... 7 bar
Air quality class at the outputCompressed air as per ISO 85...
186453
Festo

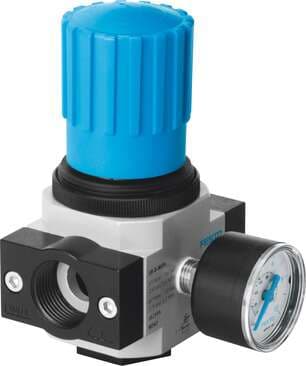

pressure regulator LR-1/4-D-7-MIDI With pressure gauge, working pressure up to 7 bar. Size: Midi, Se...
SizeMidi
Actuator lockRotary knob with detent
Operating pressure0 bar ... 16 bar
Operating medium-
Ambient temperature-
Product weight-
Type codeLR
DesignDirectly controlled diaphrag...
Pressure regulation range0.5 bar ... 7 bar
Air quality class at the output-
528975
Festo

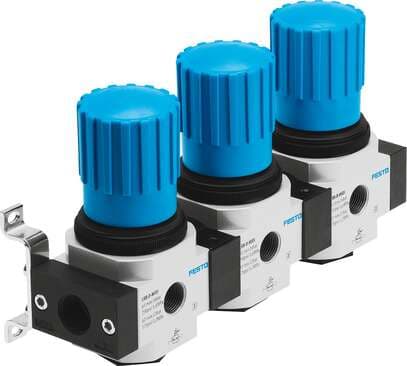

pressure regulator combination LRB-1/2-D-O-K3-MIDI With connecting kit, sub-base and mounting bracke...
SizeMidi
Actuator lockRotary knob with detent
Operating pressure1 bar ... 16 bar
Operating medium-
Ambient temperature-
Product weight-
Type codeLRB
DesignDirectly controlled diaphrag...
Pressure regulation range0.5 bar ... 12 bar
Air quality class at the output-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
