162653 Festo Compressed Air Preparation Units

162653 on Powermatic Associates
Festo

Part#:162653

Alt. Part#:LFMA-3/8-D-MIDI-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

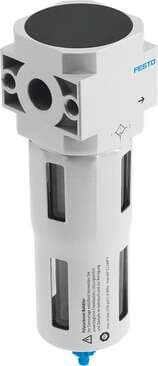

micro filter LFMA-3/8-D-MIDI-A With bowl guard. Series: D, Size: Midi, Design structure: Fibre filter, Grade of filtration: 0,01 µm, Condensate drain: fully automatic

Product Details

  • Type code
    LFMA
  • Condensate drain
    Fully automatic
  • Size
    Midi
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Bowl guard
    Metal bowl guard
  • Type of mounting
    Optionally: With accessories
  • Compressed air filter material
    Borosilicate fiber
  • Series
    D
  • Grade of filtration
    0.01 µm
  • Operating pressure
    2 bar ... 12 bar
  • Filter efficiency
    99.9999 %
  • Residual oil content
    0.01 mg/m³
  • Pneumatic connection 1
    G3/8
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Design
    Fiber filter
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    G3/8
  • Product weight
    650 g
  • Symbol
    00991520
  • Min. standard flow rate for air quality class
    250 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Mounting position
    Vertical +/- 5°
  • Material of bowl
    PC
  • Max. standard flow rate for air quality class
    880 l/min
  • Temperature of medium
    1.5 °C ... 60 °C
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

162653 Related Documents

162653 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Units

529609 on Powermatic Associates

529609

Festo

filter MS6-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully autom

15 in stock
531229 on Powermatic Associates

531229

Festo

filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 4, Series: MS, Ac

5 in stock
162684 on Powermatic Associates

162684

Festo

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

2 in stock
162680 on Powermatic Associates

162680

Festo

lubricator LOE-3/8-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

1 in stock
529186 on Powermatic Associates

529186

Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: M

9 in stock
530506 on Powermatic Associates

530506

Festo

fine filter MS6-LFM-1/2-BRV 1 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Series: MS, Size: 6, Design structure: Fibre filter, Grade of filtration: 1 µm, Condensate drain: fully aut

0 in stock

Manufacturer warranty

162653 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 162653 with other Compressed Air Preparation Units products

Type code

Condensate drain

Size

Operating medium

Bowl guard

Type of mounting

Compressed air filter mat...

Series

Grade of filtration

Operating pressure

Selected product

162653
Backordered
162653
Festo

micro filter LFMA-3/8-D-MIDI-A With bowl guard. Series: D, Size: Midi, Design structure: Fibre filte...

Type codeLFMA

Condensate drainFully automatic

SizeMidi

Operating mediumCompressed air as per ISO 85...

Bowl guardMetal bowl guard

Type of mountingOptionally: With accessories

Compressed air filter materialBorosilicate fiber

SeriesD

Grade of filtration0.01 µm

Operating pressure2 bar ... 12 bar

192566
30 in stock
192566
Festo

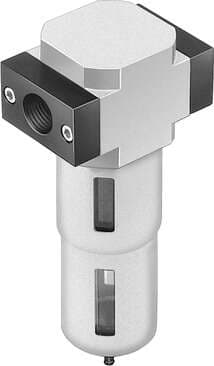

micro filter LFMA-D-MINI-A Without threaded connection plates with FRB threaded pin. 0.01 µm filter ...

Type codeLFMA

Condensate drainFully automatic

SizeMini

Operating mediumCompressed air as per ISO 85...

Bowl guard-

Type of mounting-

Compressed air filter material-

SeriesD

Grade of filtration0.01 µm

Operating pressure2 bar ... 12 bar

529657
20 in stock
529657
Festo

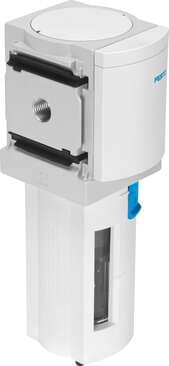

micro filter MS6-LFM-1/2-AUV 0.01 µm filter, metal bowl guard, fully automatic condensate drain, flo...
