162660 Festo Compressed Air Preparation Units

162660 on Powermatic Associates
Festo

Part#:162660

Alt. Part#:LFMBA-3/8-D-MINI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

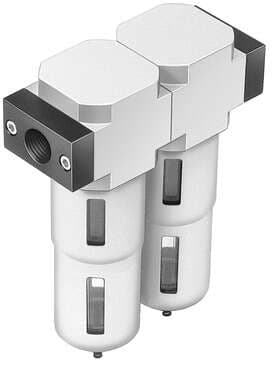

fine filter combination LFMBA-3/8-D-MINI Micro filter 1 µm for prefiltration and micro filter 0.01 µm, with metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Grade of filtration: 0,01 µm, Filter efficiency: 99,9999 %

Product Details

  • Type code
    LFMBA
  • Condensate drain
    Manually rotating
  • Residual oil content
    0.01 mg/m³
  • Compressed air filter material
    Borosilicate fiber
  • Size
    Mini
  • Grade of filtration
    0.01 µm
  • Max. condensate volume
    22 ml
  • Operating pressure
    1 bar ... 16 bar
  • Mounting position
    Vertical +/- 5°
  • Filter efficiency
    99.9999 %
  • Symbol
    00991740
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Product weight
    500 g
  • Pneumatic connection 2
    G3/8
  • Design
    Fiber filter
  • Temperature of medium
    1.5 °C ... 60 °C
  • Pneumatic connection 1
    G3/8
  • Material of bowl
    PC
  • Series
    D
  • Bowl guard
    Metal bowl guard
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas
  • Type of mounting
    Line installation With accessories
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

162660 Related Documents

162660 DataSheet.pdf
