162663 Festo Compressed Air Preparation Units

162663 on Powermatic Associates
Festo

Part#:162663

Alt. Part#:LFMBA-3/4-D-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

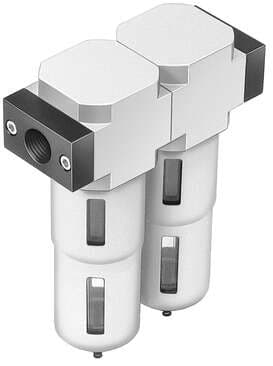

fine filter combination LFMBA-3/4-D-MIDI Micro filter 1 µm for prefiltration and micro filter 0.01 µm, with metal bowl guard. Size: Midi, Series: D, Assembly position: Vertical +/- 5°, Grade of filtration: 0,01 µm, Filter efficiency: 99,9999 %

Product Details

  • Type code
    LFMBA
  • Grade of filtration
    0.01 µm
  • Operating pressure
    1 bar ... 16 bar
  • Product weight
    1300 g
  • Pneumatic connection 2
    G3/4
  • Material of bowl
    PC
  • Filter efficiency
    99.9999 %
  • Condensate drain
    Manually rotating
  • Residual oil content
    0.01 mg/m³
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Compressed air filter material
    Borosilicate fiber
  • Series
    D
  • Bowl guard
    Metal bowl guard
  • Symbol
    00991740
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G3/4
  • Housing material
    Die-cast zinc
  • Mounting position
    Vertical +/- 5°
  • Design
    Fiber filter
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas
  • Type of mounting
    Line installation With accessories
  • Size
    Midi
  • Max. condensate volume
    43 ml
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Temperature of medium
    1.5 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

162663 Related Documents

162663 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Units

529609 on Powermatic Associates

529609

Festo

filter MS6-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully autom

15 in stock
531229 on Powermatic Associates

531229

Festo

filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 4, Series: MS, Ac

5 in stock
162684 on Powermatic Associates

162684

Festo

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

2 in stock
162680 on Powermatic Associates

162680

Festo

lubricator LOE-3/8-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

1 in stock
529186 on Powermatic Associates

529186

Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: M

9 in stock
530506 on Powermatic Associates

530506

Festo

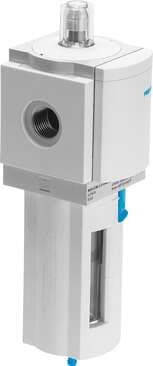

fine filter MS6-LFM-1/2-BRV 1 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Series: MS, Size: 6, Design structure: Fibre filter, Grade of filtration: 1 µm, Condensate drain: fully aut
