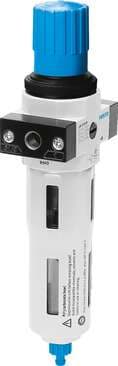

162687 Festo Compressed Air Preparation Units
Part#:162687
Alt. Part#:LFR-1/4-D-O-MINI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
filter regulator LFR-1/4-D-O-MINI With metal bowl guard, without pressure gauge, degree of filtration 40 µm. With manual condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration
Product Details
- Series D
- Type code LFR
- Mounting position Vertical +/- 5°
- Max. condensate volume 22 ml
- Pressure gauge G1/8 prepared
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 2 G¼
- Maritime classification See certificate
- Grade of filtration 40 µm
- Symbol 00991586
- Pressure regulation range 0.5 bar ... 12 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 410 g
- Pneumatic connection 1 G1/4
- Size Mini
- Actuator lock Rotary knob with detent
- Design Filter regulator without pressure gauge
- Operating pressure 1 bar ... 16 bar
- Standard nominal flow rate 1400 l/min
- Storage temperature -10 °C ... 60 °C
- Temperature of medium -10 °C ... 60 °C
- Housing material Die-cast zinc
- Condensate drain Manually rotating
- Bowl guard Metal bowl guard
- Max. pressure hysteresis 0.2 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Type of mounting Optionally: With accessories
- Material of bowl PC
- Ambient temperature -10 °C ... 60 °C
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
