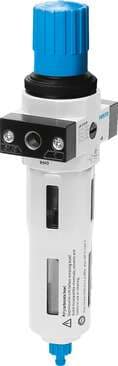

162692 Festo Compressed Air Preparation Units
Part#:162692
Alt. Part#:LFR-3/4-D-O-MAXI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
filter regulator LFR-3/4-D-O-MAXI With metal bowl guard, without pressure gauge, degree of filtration 40 µm. With manual condensate drain. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration
Product Details
- Symbol 00991587
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 1300 g
- Pneumatic connection 2 G3/4
- Type code LFR
- Actuator lock Rotary knob with detent
- Bowl guard Metal bowl guard
- Pressure regulation range 0.5 bar ... 12 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Material of bowl PC
- Mounting position Vertical +/- 5°
- Operating pressure 1 bar ... 16 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -10 °C ... 60 °C
- Type of mounting Optionally: With accessories
- Maritime classification See certificate
- Series D
- Condensate drain Manually rotating
- Max. condensate volume 80 ml
- Standard nominal flow rate 9700 l/min
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Note on materials Free of copper and PTFE RoHS-compliant
- Size Maxi
- Grade of filtration 40 µm
- Design Filter regulator without pressure gauge
- Pressure gauge G1/4 prepared
- Max. pressure hysteresis 0.4 bar
- Storage temperature -10 °C ... 60 °C
- Pneumatic connection 1 G3/4
- Housing material Die-cast zinc
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
