162693 Festo Compressed Air Preparation Units

162693 on Powermatic Associates
Festo

Part#:162693

Alt. Part#:LFR-1-D-O-MAXI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

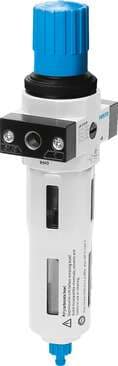

filter regulator LFR-1-D-O-MAXI With metal bowl guard, without pressure gauge, degree of filtration 40 µm. With manual condensate drain. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration:

Product Details

  • Maritime classification
    See certificate
  • Condensate drain
    Manually rotating
  • Operating pressure
    1 bar ... 16 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Type code
    LFR
  • Actuator lock
    Rotary knob with detent
  • Max. condensate volume
    80 ml
  • Pressure gauge
    G1/4 prepared
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Series
    D
  • Design
    Filter regulator without pressure gauge
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1
  • Size
    Maxi
  • Grade of filtration
    40 µm
  • Symbol
    00991587
  • Standard nominal flow rate
    10000 l/min
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Pneumatic connection 2
    G1
  • Mounting position
    Vertical +/- 5°
  • Bowl guard
    Metal bowl guard
  • Max. pressure hysteresis
    0.4 bar
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Optionally: With accessories
  • Material of bowl
    PC
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    1400 g
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

162693 Related Documents

162693 DataSheet.pdf
