162706 Festo Compressed Air Preparation Units
Part#:162706
Alt. Part#:LFR-1/2-D-7-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

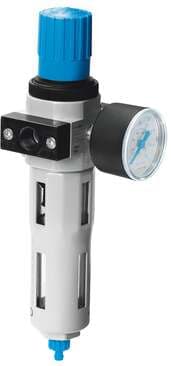

filter regulator LFR-1/2-D-7-MIDI Outlet pressure max. 7 bar, with metal bowl guard and pressure gauge. With manual condensate drain. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40
Product Details
- Grade of filtration 40 µm
- Series D
- Condensate drain Manually rotating
- Symbol 00991585
- Storage temperature -10 °C ... 60 °C
- Product weight 900 g
- Type of mounting Optionally: With accessories
- Pneumatic connection 2 G1/2
- Maritime classification See certificate
- Mounting position Vertical +/- 5°
- Pressure gauge with pressure gauge
- Max. pressure hysteresis 0.2 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Housing material Die-cast zinc
- Type code LFR
- Design Filter regulator with pressure gauge
- Bowl guard Metal bowl guard
- Operating pressure 1 bar ... 16 bar
- Ambient temperature -10 °C ... 60 °C
- Note on materials RoHS-compliant
- Size Midi
- Actuator lock Rotary knob with detent
- Pressure regulation range 0.5 bar ... 7 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G1/2
- Max. condensate volume 43 ml
- Standard nominal flow rate 3900 l/min
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Material of bowl PC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
162706 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
162706 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 162706 with other Compressed Air Preparation Units products
Grade of filtration
Series
Condensate drain
Symbol
Storage temperature
Product weight
Type of mounting
Pneumatic connection 2
Maritime classification
Mounting position
Selected product
162706
Festo
filter regulator LFR-1/2-D-7-MIDI Outlet pressure max. 7 bar, with metal bowl guard and pressure gau...
Grade of filtration40 µm
SeriesD
Condensate drainManually rotating
Symbol00991585
Storage temperature-10 °C ... 60 °C
Product weight900 g
Type of mountingOptionally: With accessories
Pneumatic connection 2G1/2
Maritime classificationSee certificate
Mounting positionVertical +/- 5°
162684
Festo
filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
Grade of filtration40 µm
SeriesD
Condensate drainFully automatic
Symbol00991583
Storage temperature-
Product weight-
Type of mounting-
Pneumatic connection 2-
Maritime classificationSee certificate
Mounting positionVertical +/- 5°
159637
Festo
filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
Grade of filtration40 µm
SeriesD
Condensate drainFully automatic
Symbol00991587
Storage temperature-
Product weight-
Type of mounting-
Pneumatic connection 2-
Maritime classificationSee certificate
Mounting positionVertical +/- 5°
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
