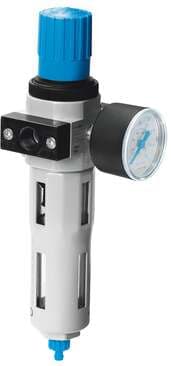

162709 Festo Compressed Air Preparation Units
Part#:162709
Alt. Part#:LFR-1-D-7-MAXI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
filter regulator LFR-1-D-7-MAXI Outlet pressure max. 7 bar, with metal bowl guard and pressure gauge. With manual condensate drain. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm
Product Details
- Maritime classification See certificate
- Actuator lock Rotary knob with detent
- Max. condensate volume 80 ml
- Pressure gauge with pressure gauge
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 1470 g
- Pneumatic connection 2 G1
- Size Maxi
- Mounting position Vertical +/- 5°
- Condensate drain Manually rotating
- Pressure regulation range 0.5 bar ... 7 bar
- Standard nominal flow rate 11000 l/min
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 1 G1
- Housing material Die-cast zinc
- Grade of filtration 40 µm
- Design Filter regulator with pressure gauge
- Max. pressure hysteresis 0.4 bar
- Storage temperature -10 °C ... 60 °C
- Type of mounting Optionally: With accessories
- Material of bowl PC
- Type code LFR
- Symbol 00991589
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Series D
- Bowl guard Metal bowl guard
- Operating pressure 1 bar ... 16 bar
- Temperature of medium -10 °C ... 60 °C
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
