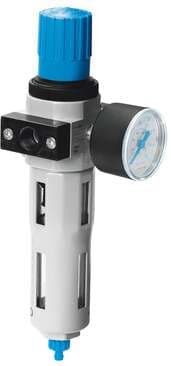

162719 Festo Compressed Air Preparation Units
Part#:162719
Alt. Part#:LFR-1/4-D-5M-MINI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
filter regulator LFR-1/4-D-5M-MINI With metal bowl guard and pressure gauge, Degree of filtration 5 µm. With manual condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µ
Product Details
- Maritime classification See certificate
- Actuator lock Rotary knob with detent
- Symbol 00991585
- Size Mini
- Type code LFR
- Condensate drain Manually rotating
- Bowl guard Metal bowl guard
- Max. pressure hysteresis 0.2 bar
- Temperature of medium -10 °C ... 60 °C
- Max. condensate volume 22 ml
- Pressure regulation range 0.5 bar ... 12 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 460 g
- Series D
- Mounting position Vertical +/- 5°
- Operating pressure 1 bar ... 16 bar
- Standard nominal flow rate 1200 l/min
- Storage temperature -10 °C ... 60 °C
- Grade of filtration 5 µm
- Design Filter regulator with pressure gauge
- Pressure gauge with pressure gauge
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 G¼
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
- Pneumatic connection 1 G1/4
- Material of bowl PC
- Type of mounting Optionally: With accessories
- Housing material Die-cast zinc
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
162719 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
162719 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 162719 with other Compressed Air Preparation Units products
Maritime classification
Actuator lock
Symbol
Size
Type code
Condensate drain
Bowl guard
Max. pressure hysteresis
Temperature of medium
Max. condensate volume
Selected product
162719
Festo
filter regulator LFR-1/4-D-5M-MINI With metal bowl guard and pressure gauge, Degree of filtration 5 ...
Maritime classificationSee certificate
Actuator lockRotary knob with detent
Symbol00991585
SizeMini
Type codeLFR
Condensate drainManually rotating
Bowl guardMetal bowl guard
Max. pressure hysteresis0.2 bar
Temperature of medium-10 °C ... 60 °C
Max. condensate volume22 ml
162684
Festo
filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
Maritime classificationSee certificate
Actuator lockRotary knob with detent
Symbol00991583
SizeMini
Type codeLFR
Condensate drainFully automatic
Bowl guard-
Max. pressure hysteresis-
Temperature of medium-
Max. condensate volume22 ml
159637
Festo
filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
Maritime classificationSee certificate
Actuator lockRotary knob with detent
Symbol00991587
SizeMaxi
Type codeLFR
Condensate drainFully automatic
Bowl guard-
Max. pressure hysteresis-
Temperature of medium-
Max. condensate volume80 ml
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
