162725 Festo Compressed Air Preparation Units
Part#:162725
Alt. Part#:LFR-1-D-5M-MAXI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

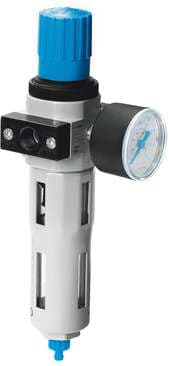

filter regulator LFR-1-D-5M-MAXI With metal bowl guard and pressure gauge, Degree of filtration 5 µm. With manual condensate drain. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm
Product Details
- Series D
- Grade of filtration 5 µm
- Max. condensate volume 80 ml
- Maritime classification See certificate
- Mounting position Vertical +/- 5°
- Design Filter regulator with pressure gauge
- Operating pressure 1 bar ... 16 bar
- Symbol 00991589
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting Optionally: With accessories
- Material of bowl PC
- Condensate drain Manually rotating
- Pressure gauge with pressure gauge
- Standard nominal flow rate 8000 l/min
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Product weight 1470 g
- Note on materials RoHS-compliant
- Type code LFR
- Actuator lock Rotary knob with detent
- Bowl guard Metal bowl guard
- Pressure regulation range 0.5 bar ... 12 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
- Pneumatic connection 2 G1
- Housing material Die-cast zinc
- Size Maxi
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G1
- Max. pressure hysteresis 0.4 bar
- Storage temperature -10 °C ... 60 °C
- Ambient temperature -10 °C ... 60 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
162725 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
162725 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 162725 with other Compressed Air Preparation Units products
Series
Grade of filtration
Max. condensate volume
Maritime classification
Mounting position
Design
Operating pressure
Symbol
Corrosion resistance clas...
Type of mounting
Selected product
162725
Festo
filter regulator LFR-1-D-5M-MAXI With metal bowl guard and pressure gauge, Degree of filtration 5 µm...
SeriesD
Grade of filtration5 µm
Max. condensate volume80 ml
Maritime classificationSee certificate
Mounting positionVertical +/- 5°
DesignFilter regulator with pressu...
Operating pressure1 bar ... 16 bar
Symbol00991589
Corrosion resistance class (CRC)2 - Moderate corrosion stres...
Type of mountingOptionally: With accessories
159637
Festo
filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
SeriesD
Grade of filtration40 µm
Max. condensate volume80 ml
Maritime classificationSee certificate
Mounting positionVertical +/- 5°
DesignFilter regulator with pressu...
Operating pressure-
Symbol-
Corrosion resistance class (CRC)-
Type of mounting-
162684
Festo
filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
SeriesD
Grade of filtration40 µm
Max. condensate volume22 ml
Maritime classificationSee certificate
Mounting positionVertical +/- 5°
DesignFilter regulator with pressu...
Operating pressure-
Symbol-
Corrosion resistance class (CRC)-
Type of mounting-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
