162743 Festo Compressed Air Preparation Units
Part#:162743
Alt. Part#:FRC-3/4-D-O-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

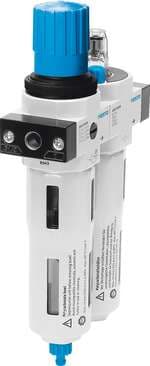

service unit FRC-3/4-D-O-MIDI Filter/regulator/lubricator combination, 40 µm filter, with metal bowl guard. With manual condensate drain. Without pressure gauge. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/-
Product Details
- Series D
- Design Filter regulator with pressure gauge Proportional standard oil mist lubricator
- Symbol 00991550
- Pressure regulation range 0.5 bar ... 12 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 1350 g
- Max. condensate volume 43 ml
- Pressure gauge G1/4 prepared
- Ambient temperature -10 °C ... 60 °C
- Temperature of medium -10 °C ... 60 °C
- Material of bowl PC
- Maritime classification See certificate
- Actuator lock Rotary knob with detent
- Bowl guard Metal bowl guard
- Operating pressure 1 bar ... 16 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Type of mounting Line installation With accessories
- Housing material Die-cast zinc
- Size Midi
- Mounting position Vertical +/- 5°
- Condensate drain Manually rotating
- Standard nominal flow rate 2600 l/min
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 1 G3/4
- Note on materials RoHS-compliant
- Type code FRC
- Grade of filtration 40 µm
- Max. pressure hysteresis 0.2 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas
- Pneumatic connection 2 G3/4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
