162765 Festo Compressed Air Preparation Units
Part#:162765
Alt. Part#:FRC-3/8-D-7-MIDI-A
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

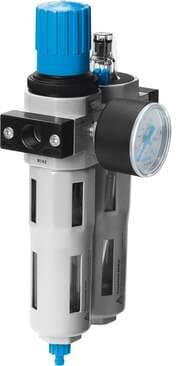

service unit FRC-3/8-D-7-MIDI-A Filter/regulator/lubricator combination, maximum outlet pressure 7 bar, 40 µm filter, with metal bowl guard. With automatic condensate drain. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position:
Product Details
- Maritime classification See certificate
- Design Filter regulator with pressure gauge Proportional standard oil mist lubricator
- Series D
- Max. condensate volume 43 ml
- Operating pressure 2 bar ... 12 bar
- Max. pressure hysteresis 0.2 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas
- Pneumatic connection 1 G3/8
- Material of bowl PC
- Operating medium Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type code FRC
- Condensate drain Fully automatic
- Pressure gauge with pressure gauge
- Standard nominal flow rate 2000 l/min
- Product weight 1440 g
- Note on materials RoHS-compliant
- Size Midi
- Actuator lock Rotary knob with detent
- Mounting position Vertical +/- 5°
- Grade of filtration 40 µm
- Pressure regulation range 0.5 bar ... 7 bar
- Symbol 00991509
- Bowl guard Metal bowl guard
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Ambient temperature -10 °C ... 60 °C
- Temperature of medium -10 °C ... 60 °C
- Type of mounting Line installation With accessories
- Housing material Die-cast zinc
- Pneumatic connection 2 G3/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
162765 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
162765 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 162765 with other Compressed Air Preparation Units products
Maritime classification
Design
Series
Max. condensate volume
Operating pressure
Max. pressure hysteresis
Air quality class at the ...
Pneumatic connection 1
Material of bowl
Operating medium
Selected product
162765
Festo
service unit FRC-3/8-D-7-MIDI-A Filter/regulator/lubricator combination, maximum outlet pressure 7 b...
Maritime classificationSee certificate
DesignFilter regulator with pressu...
SeriesD
Max. condensate volume43 ml
Operating pressure2 bar ... 12 bar
Max. pressure hysteresis0.2 bar
Air quality class at the outputCompressed air as per ISO 85...
Pneumatic connection 1G3/8
Material of bowlPC
Operating mediumCompressed air as per ISO 85...
162684
Festo
filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
Maritime classificationSee certificate
DesignFilter regulator with pressu...
SeriesD
Max. condensate volume22 ml
Operating pressure2 bar ... 12 bar
Max. pressure hysteresis-
Air quality class at the output-
Pneumatic connection 1-
Material of bowl-
Operating medium-
159637
Festo
filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
Maritime classificationSee certificate
DesignFilter regulator with pressu...
SeriesD
Max. condensate volume80 ml
Operating pressure2 bar ... 12 bar
Max. pressure hysteresis-
Air quality class at the output-
Pneumatic connection 1-
Material of bowl-
Operating medium-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
