162808 Festo Compressed Air Preparation Units
Part#:162808
Alt. Part#:HE-3/8-D-MINI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

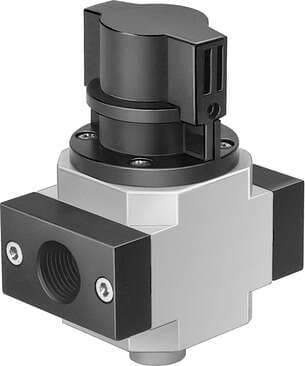

on-off valve HE-3/8-D-MINI For service units, with threaded connecting plate Design structure: Piston slide, Type of actuation: manual, Sealing principle: soft, Exhaust-air function: not throttleable, Manual override: None
Product Details
- Operating pressure 0 bar ... 16 bar
- Actuation type Manual
- Valve function 3/2, bistable
- Design Piston gate valve
- Manual override None
- b-value 0.27
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting Line installation With accessories
- Pneumatic connection 3 G1/8
- Maritime classification See certificate
- Sealing principle Soft
- C value 7.5 l/sbar
- Standard nominal flow rate 1600 l/min
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 2 G3/8
- Housing material Die-cast aluminum
- Type code HE
- Exhaust air function Without flow control option
- Symbol 00995571
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Flow direction Non-reversible
- Note on materials RoHS-compliant
- Product weight 192 g
- Mounting position Any
- Seals material NBR
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection 1 G3/8
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
