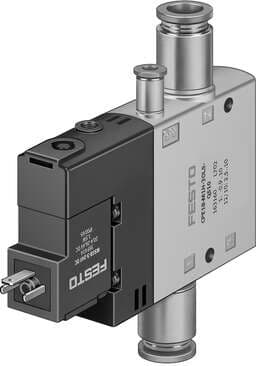

163781 Festo Directional Control Valves

Product Details

• Valve function
  3/2, closed, monostable
• Width
  18 mm
• Design
  Piston gate valve
• Sealing principle
  Soft
• Pilot air supply port
  External
• Switching time off
  18 ms
• Coil characteristics
  110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 3
  G1/4
• Seals material
  NBR
• Lap
  Overlap
• Pneumatic working port
  QS-10
• Certification
  c UL us - Recognized (OL)
• Manual override
  Detenting via accessory Non-detenting
• Pilot pressure
  2.5 bar ... 10 bar
• On switching time
  28 ms
• Max. negative test pulse on 1 signal
  3100 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -5 °C ... 50 °C
Type of mounting
With through-hole
Pneumatic connection 2
QS-10
Note on materials
RoHS-compliant
Actuation type
Electrical
Reset method
Pneumatic spring
Mounting position
Any
Symbol
00991405
Duty cycle
100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Form C
Pilot air port 12
M5
Housing material
Die-cast aluminum
Maritime classification
See certificate
Operating pressure
-0.9 bar ... 10 bar
Operating voltage
110V AC
Degree of protection
IP65 as per IEC 60529
Type of control
Pilot-controlled
Flow direction
Non-reversible
Standard nominal flow rate
1000 l/min
Type code
CPE18
Nominal width
8 mm
Valve position ID
Label holder
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M5
Pneumatic connection 1
QS-10
