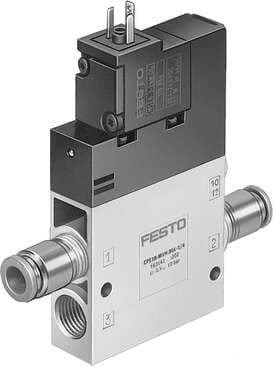

163793 Festo Directional Control Valves

Product Details

• Pilot exhaust air port 82
  M5
• Pneumatic connection 2
  QS-8
• Lap
  Overlap
• Standard nominal flow rate
  850 l/min
• Design
  Piston gate valve
• Mounting position
  Any
• Valve position ID
  Label holder
• On switching time
  28 ms
• Maritime classification
  See certificate
• Operating pressure
  2.5 bar ... 10 bar
• Type code
  CPE18
• Valve function
  3/2, closed, monostable
• Width
  18 mm
• Reset method
  Pneumatic spring
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Duty cycle
  100%
• Max. negative test pulse on 1 signal
  3100 µs
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 50 °C
Pneumatic connection 1
QS-8
Actuation type
Electrical
Pneumatic working port
QS-8
Degree of protection
IP65 as per IEC 60529
Manual override
Detenting via accessory Non-detenting
Symbol
00991655
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Operating voltage
230V AC
Nominal width
8 mm
Certification
c UL us - Recognized (OL)
Type of control
Pilot-controlled
Max. positive test pulse with 0 signal
3300 µs
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Pilot air port 12
M5
Note on materials
RoHS-compliant
Pilot air supply port
Internal
Switching time off
18 ms
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pneumatic connection 3
G1/4
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 50 °C
Type of mounting
With through-hole
Seals material
NBR
Housing material
Die-cast aluminum
