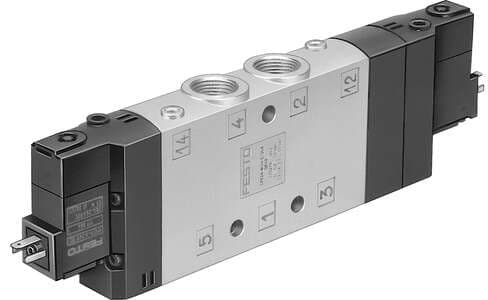

163811 Festo Directional Control Valves

Product Details

• Pilot air port 12
  M5
• Pneumatic connection 1
  G3/8
• Product weight
  390 g
• Actuation type
  Electrical
• Operating voltage
  110V AC
• Degree of protection
  IP65 as per IEC 60529
• Manual override
  Detenting via accessory Non-detenting
• Flow direction
  Non-reversible
• Max. negative test pulse on 1 signal
  3100 µs
• Duty cycle
  100%
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Maritime classification
  See certificate
• Pneumatic working port
  G3/8
• Design
  Piston gate valve
• Certification
  c UL us - Recognized (OL)
• Mounting position
  Any
• Symbol
  00991013
• Max. positive test pulse with 0 signal
  3300 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Valve function
  5/2, bistable
Standard nominal flow rate
3200 l/min
Nominal width
11 mm
Sealing principle
Soft
Changeover time
25 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Electrical connection
Form C
Pilot air port 14
M5
Housing material
Die-cast aluminum
Lap
Overlap
Type code
CPE24
Type of control
Pilot-controlled
Valve position ID
Label holder
Permissible voltage fluctuations
-15 % / +10 %
Temperature of medium
-5 °C ... 50 °C
Type of mounting
With through-hole
Pneumatic connection 5
G3/8
Width
24 mm
Operating pressure
2 bar ... 10 bar
Exhaust air function
With flow control option
Pilot air supply port
Internal
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot exhaust air port 82
M5
Pneumatic connection 2
G3/8
Seals material
NBR
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 84
M5
Pneumatic connection 3
G3/8
Pneumatic connection 4
G3/8
Note on materials
RoHS-compliant
