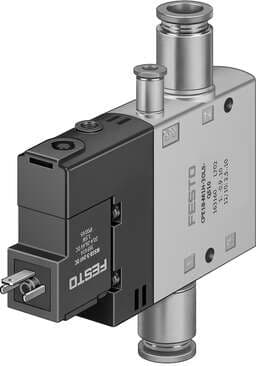

163820 Festo Directional Control Valves

Product Details

• Type code
  CPE24
• Symbol
  00991402
• Flow direction
  Non-reversible
• Maritime classification
  See certificate
• Width
  24 mm
• Operating voltage
  110V AC
• Degree of protection
  IP65 as per IEC 60529
• Lap
  Overlap
• Pneumatic working port
  QS-10
• Reset method
  Pneumatic spring
• Sealing principle
  Soft
• Pilot air supply port
  External
• Pilot pressure
  2.5 bar ... 10 bar
• Coil characteristics
  110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Pneumatic connection 3
  G3/8
• Valve function
  3/2, open, monostable
• Actuation type
  Electrical
• Standard nominal flow rate
  1250 l/min
Design
Piston gate valve
Nominal width
11 mm
Mounting position
Any
Switching time off
33 ms
Max. negative test pulse on 1 signal
3100 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Note on materials
RoHS-compliant
Valve position ID
Label holder
Operating pressure
-0.9 bar ... 10 bar
Certification
c UL us - Recognized (OL)
Type of control
Pilot-controlled
Duty cycle
100%
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot air port 12
M5
Housing material
Die-cast aluminum
Manual override
Detenting via accessory Non-detenting
On switching time
50 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 2
QS-10
Pneumatic connection 1
QS-10
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Temperature of medium
-5 °C ... 50 °C
Electrical connection
Form C
Type of mounting
With through-hole
Seals material
NBR
