163854 Festo Directional Control Valves
Part#:163854
Alt. Part#:CPE24-M3H-5LS-QS-12
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

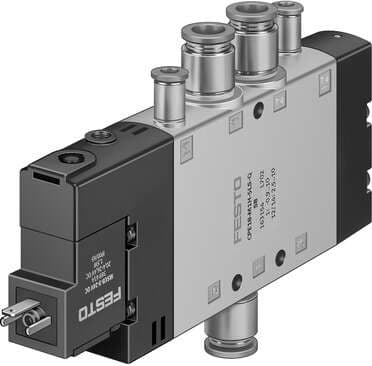

solenoid valve CPE24-M3H-5LS-QS-12 High component density Valve function: 5/2 monostable, Type of actuation: electrical, Width: 24 mm, Standard nominal flow rate: 1650 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Operating voltage 230V AC
- Maritime classification See certificate
- Lap Overlap
- Pneumatic working port QS-12
- Degree of protection IP65 as per IEC 60529
- Nominal width 11 mm
- Flow direction Reversible
- Pilot air supply port External
- Max. negative test pulse on 1 signal 3100 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium -5 °C ... 50 °C
- Pilot exhaust air port 82 M5
- Pilot air port 12 M5
- Pneumatic connection 4 QS-12
- Valve function 5/2, monostable
- Standard nominal flow rate 1650 l/min
- Reset method Pneumatic spring
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- On switching time 40 ms
- Switching time off 50 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot exhaust air port 84 M5
- Pilot air port 14 M5
- Pneumatic connection 3 G3/8
- Seals material NBR
- Actuation type Electrical
- Design Piston gate valve
- Sealing principle Soft
- Valve position ID Label holder
- Duty cycle 100%
- Coil characteristics 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Type of mounting With through-hole
- Pneumatic connection 2 QS-12
- Pneumatic connection 5 G3/8
- Housing material Die-cast aluminum
- Width 24 mm
- Operating pressure -0.9 bar ... 10 bar
- Type code CPE24
- Mounting position Any
- Pilot pressure 2.5 bar ... 10 bar
- Max. positive test pulse with 0 signal 3300 µs
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Form C
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 1 QS-12
- Note on materials RoHS-compliant
- Certification c UL us - Recognized (OL)
- Manual override Detenting via accessory Non-detenting
- Symbol 00991026
- Permissible voltage fluctuations -15 % / +10 %
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
