164980 Festo Pneumatic Fittings
Part#:164980
Alt. Part#:QS-1/4-12
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

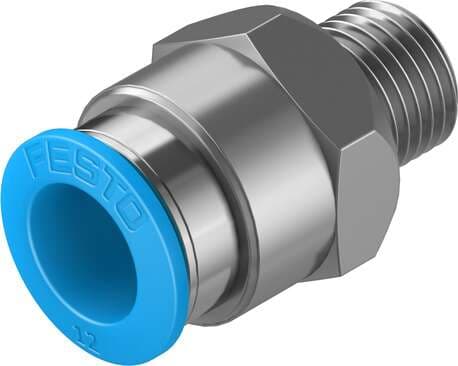

push-in fitting QS-1/4-12 male thread with external hexagon. Size: Standard, Nominal size: 8,5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10
Product Details
- Nominal width 8.5 mm
- Type of seal on screwed trunnion Coating
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Ambient temperature -10 °C ... 80 °C
- Pneumatic connection 2 for pneumatic tubing outside diameter 12 mm
- Releasing ring color Blue
- Releasing ring material POM
- Size Standard
- Design Push-pull principle
- Information on operating and pilot media Operation with oil lubrication possible
- Product weight 37 g
- Housing material Brass Nickel-plated
- Maritime classification See certificate
- Pack size 10
- Mounting position Any
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Note on materials RoHS-compliant
- Material of tube retaining claw High-alloy stainless steel
- Type code QS
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Pneumatic connection 1 External thread R1/4
- Material of tubing seal NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
