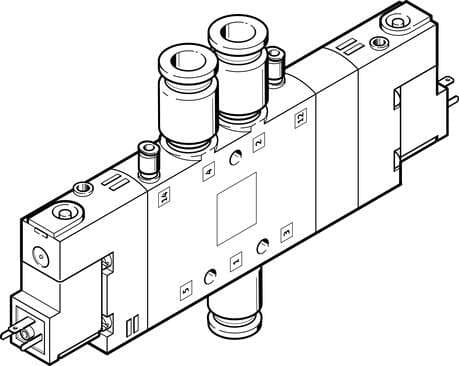

170254 Festo Directional Control Valves
Part#:170254
Alt. Part#:CPE18-M1H-5/3GS-QS-8
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve CPE18-M1H-5/3GS-QS-8 High component density Valve function: 5/3 closed, Type of actuation: electrical, Width: 18 mm, Standard nominal flow rate: 850 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Valve function 5/3, closed
- Standard nominal flow rate 850 l/min
- Operating pressure -0.9 bar ... 10 bar
- Pilot air supply port External
- Pilot pressure 2.5 bar ... 10 bar
- Duty cycle 100%
- Design Piston gate valve
- Certification c UL us - Recognized (OL)
- Sealing principle Soft
- Flow direction Reversible
- Valve position ID Label holder
- Max. negative test pulse on 1 signal 3100 µs
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot exhaust air port 82 M5
- Pneumatic connection 3 G1/4
- Actuation type Electrical
- Operating voltage 24V DC
- Nominal width 8 mm
- Manual override Detenting via accessory Non-detenting
- Mounting position Any
- Switching time off 38 ms
- Max. positive test pulse with 0 signal 3300 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Ambient temperature -5 °C ... 50 °C
- Pilot air port 12 M5
- Pneumatic connection 5 G1/4
- Lap Overlap
- Pneumatic working port QS-8
- Reset method Mechanical spring
- Type code CPE18
- Type of control Pilot-controlled
- Symbol 00991020
- On switching time 20 ms
- Coil characteristics 24 V DC: 1.5 W
- Permissible voltage fluctuations -15 % / +10 %
- Temperature of medium -5 °C ... 50 °C
- Type of mounting With through-hole
- Pneumatic connection 1 QS-8
- Pneumatic connection 4 QS-8
- Maritime classification See certificate
- Width 18 mm
- Degree of protection IP65 as per IEC 60529
- Exhaust air function With flow control option
- Pneumatic connection 2 QS-8
- Seals material NBR
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Electrical connection Form C
- Pilot exhaust air port 84 M5
- Pilot air port 14 M5
- Note on materials RoHS-compliant
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
