Part#:170335

Alt. Part#:CPE18-M3H-5/3B-QS-10

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

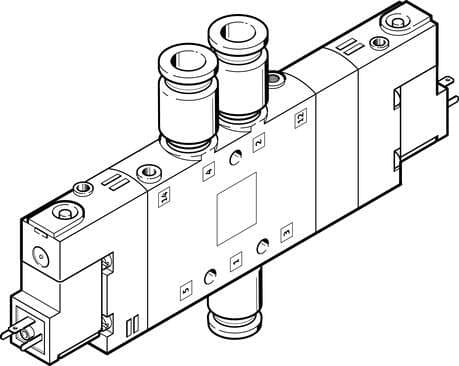

solenoid valve CPE18-M3H-5/3B-QS-10 High component density Valve function: 5/3 pressurised, Type of actuation: electrical, Width: 18 mm, Standard nominal flow rate: 1000 l/min, Operating pressure: 2,5 - 10 bar

Product Details

  • Maritime classification
    See certificate
  • Pneumatic working port
    QS-10
  • Degree of protection
    IP65 as per IEC 60529
  • Exhaust air function
    With flow control option
  • Pilot air supply port
    Internal
  • On switching time
    20 ms
  • Max. negative test pulse on 1 signal
    3100 µs
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Ambient temperature
    -5 °C ... 50 °C
  • Pilot exhaust air port 84
    M5
  • Pneumatic connection 1
    QS-10
  • Pneumatic connection 4
    QS-10
  • Lap
    Overlap
  • Operating voltage
    230V AC
  • Nominal width
    8 mm
  • Manual override
    Detenting via accessory Non-detenting
  • Symbol
    00991034
  • Duty cycle
    100%
  • Permissible voltage fluctuations
    -15 % / +10 %
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Electrical connection
    Form C
  • Pneumatic connection 2
    QS-10
  • Pneumatic connection 5
    G1/4
  • Valve function
    5/3, pressurized
  • Standard nominal flow rate
    1000 l/min
  • Reset method
    Mechanical spring
  • Type code
    CPE18
  • Type of control
    Pilot-controlled
  • Max. positive test pulse with 0 signal
    3300 µs
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium
    -5 °C ... 50 °C
  • Pilot exhaust air port 82
    M5
  • Pilot air port 12
    M5
  • Seals material
    NBR
  • Actuation type
    Electrical
  • Operating pressure
    2.5 bar ... 10 bar
  • Certification
    c UL us - Recognized (OL)
  • Mounting position
    Any
  • Switching time off
    38 ms
  • Coil characteristics
    230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    With through-hole
  • Pilot air port 14
    M5
  • Pneumatic connection 3
    G1/4
  • Note on materials
    RoHS-compliant
  • Width
    18 mm
  • Design
    Piston gate valve
  • Sealing principle
    Soft
  • Flow direction
    Non-reversible
  • Valve position ID
    Label holder
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
