173189 Festo Pneumatic Actuators
Part#:173189
Alt. Part#:DSM-6-180-P
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

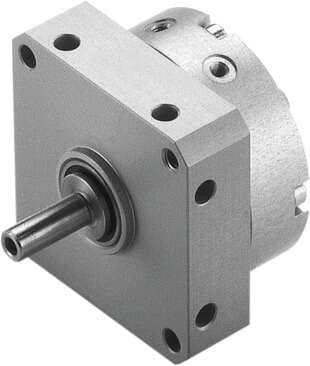

semi-rotary drive DSM-6-180-P With spigot shaft and fixed stop Size: 6, Cushioning angle: 0,5 deg, Swivel angle: 0 - 180 deg, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any
Product Details
- Design Rotary vane
- Type code DSM
- Cushioning Elastic cushioning rings/pads at both ends
- Position sensing None
- Ambient temperature 0 °C ... 60 °C
- Type of mounting With internal thread
- Seals material TPE-U(PU)
- Swivel angle 0 deg ... 180 deg
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 45 g
- Housing material Aluminum Anodized
- Size 6
- Mounting position Any
- Symbol 00991265
- Theoretical torque at 6 bar 0.15 Nm
- Pneumatic connection M3
- Mode of operation Double-acting
- Operating pressure 3.5 bar ... 8 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Drive shaft material High-alloy stainless steel
- Cushioning angle 0.5 deg
- Max. swivel frequency at 6 bar 3 Hz
- Permissible mass moment of inertia 6.5E-4 kgm²
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
