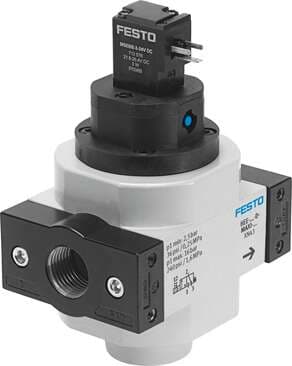

173913 Festo Compressed Air Preparation Units

Product Details

• Width dimension
  65 mm
• Actuation type
  Electrical
• Operating pressure
  2.5 bar ... 16 bar
• Sealing principle
  Soft
• Manual override
  Detenting
• Type code
  HEE
• Type of control
  Pilot-controlled
• Symbol
  00991008
• C value
  28 l/sbar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Product weight
  800 g
• Pneumatic connection 2
  3/4 NPT
• Design
  Piston gate valve
• Reset method
  Mechanical spring
• Exhaust air function
  Without flow control option
• b-value
  0.32
• Duty cycle
  100%
• Type of mounting
  Line installation With accessories
• Air quality class at the output
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Valve function
3/2, closed, monostable
Coil characteristics
110 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA
Note on materials
RoHS-compliant
Ambient temperature
-10 °C ... 60 °C
Mounting position
Any
Pilot air supply port
Internal
Seals material
NBR
Standard nominal flow rate
6000 l/min
Permissible voltage fluctuations
+/- 10 %
Temperature of medium
-10 °C ... 60 °C
Flow direction
Non-reversible
Pneumatic connection 3
G3/8
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
CE marking (see declaration of conformity)
As per EU low voltage directive
Pneumatic connection 1
3/4 NPT
Electrical connection
Form C as per DIN EN 175301-803
Signal status display
With accessories
Housing material
Die-cast aluminum
