1758069 Festo Ball Valves

Name: 1758069
Brand: Festo

Part#:1758069

Alt. Part#:VZBA-1/4"-GG-63-T-22-F0304-V4V4T-PS15-R-

Manufacturer:Festo

Category:Ball Valves

Product Lifecycle:Active

Product description

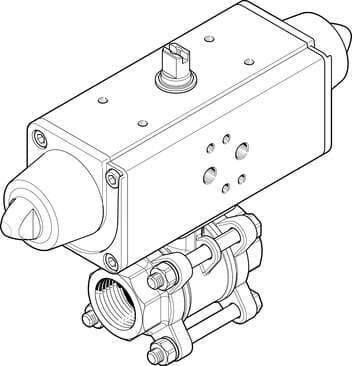

ball valve actuator unit VZBA-1/4"-GG-63-T-22-F0304-V4V4T-PS15-R- 2/2-way, flange hole pattern F0304, thread EN 10226-1. Design structure: (* 2-way ball valve, * Swivel drive), Type of actuation: pneumatic, Assembly position: Any, Mounting type: Line inst

Product Details

Housing material
High-alloy stainless steel
Nominal width DN
8
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Type code
VZBA
Mounting position
Any
Fitting connection
Rp1/4
Nominal pressure of fitting PN
63
Temperature of medium
-10 °C ... 200 °C
Ball material
High-alloy stainless steel
Corrosion resistance class (CRC)
3 - High corrosion stress
Actuation type
Pneumatic
Operating pressure
6 bar ... 8.4 bar
Symbol
00992011
Flow rate Kv
7 m³/h
Max. surface temperature of assembly
TX
Material number for shaft
1.4401
Design
2-way ball valve Quarter turn actuator
Switching position indication
Slot direction = flow direction
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 80 °C

Material number of housing

1.4408

Material number for ball

1.4408

Explosive ambient temperature

-10°C <= Ta <= +60°C

Type of mounting

Line installation

Medium

Compressed air as per ISO 8573-1:2010 [-:-:-] Neutral liquids

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Explosion group of assembly

IIC, IIIC

Product weight

2000 g

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Seals material

PTFE PTFE-reinforced

Shaft material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1758069 Related Documents

1758069 DataSheet.pdf

Manufacturer warranty

1758069 Festo
