1774104 Festo Ball Valves
Part#:1774104
Alt. Part#:VZBA-3/8"-WW-63-T-22-F0304-V4V4T-PS15-R-
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description

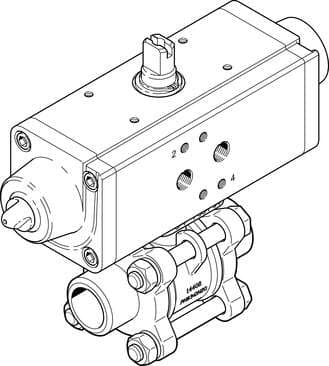

ball valve actuator unit VZBA-3/8"-WW-63-T-22-F0304-V4V4T-PS15-R- 2/2-way, flange hole pattern F0304, welded end. Design structure: (* 2-way ball valve, * Swivel drive), Type of actuation: pneumatic, Assembly position: Any, Mounting type: Line installatio
Product Details
- Design 2-way ball valve Quarter turn actuator
- Nominal width DN 10
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Actuation type Pneumatic
- Switching position indication Slot direction = flow direction
- Symbol 00992011
- Max. surface temperature of assembly TX
- Material number for shaft 1.4401
- Fitting connection Weld-on ends/weld-on ends
- Nominal pressure of fitting PN 63
- Temperature of medium -10 °C ... 200 °C
- Material number of housing 1.4408
- Housing material High-alloy stainless steel
- Explosive ambient temperature -10°C <= Ta <= +60°C
- Type code VZBA
- Mounting position Any
- Operating pressure 6 bar ... 8.4 bar
- Medium Compressed air as per ISO 8573-1:2010 [-:-:-] Neutral liquids
- Flow rate Kv 10 m³/h
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material number for ball 1.4408
- Product weight 2000 g
- Type of mounting Line installation
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Explosion group of assembly IIC, IIIC
- Shaft material High-alloy stainless steel
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Ambient temperature -10 °C ... 80 °C
- Seals material PTFE PTFE-reinforced
- Ball material High-alloy stainless steel
- Corrosion resistance class (CRC) 3 - High corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
