177778 Festo Pneumatic Actuators

177778 on Powermatic Associates
Festo

Part#:177778

Alt. Part#:DNC-11/4"-2"-P

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

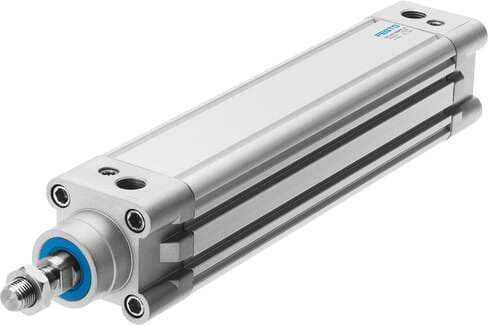

profile cylinder DNC-11/4"-2"-P per ISO 15552, with profile cylinder barrel, non-adjustable cushioning. Stroke: 2 ", Piston diameter: 1 1/4", Piston rod thread: 3/8-24 UNF-2A, Based on the standard: ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49

Product Details

  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Variants
    Piston rod at one end
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Additional weight per 10 mm stroke
    30 g
  • Cover material
    Die-cast aluminum Coated
  • Piston diameter
    1 1/4"
  • Piston rod end
    External thread
  • Symbol
    00991227
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Theoretical force at 6 bar, retracting
    415 N
  • Theoretical force at 6 bar, advancing
    483 N
  • Stroke
    50.8 mm
  • Mounting position
    Any
  • Position sensing
    None
  • Mode of operation
    Double-acting
  • Impact energy in the end positions
    0.1 J
  • Maritime classification
    See certificate
  • Based on norm
    ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
  • Operating pressure
    0.06 MPa ... 1.2 MPa
  • Ambient temperature
    -20 °C ... 80 °C
  • Basic weight with 0 mm stroke
    517 g
  • Pneumatic connection
    NPT1/8-27
  • Seals material
    TPE-U(PU)
  • Type code
    DNC
  • Piston rod thread
    3/8-24 UNF-2A
  • Design
    Piston Profile barrel
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Moving mass at 0 mm stroke
    162 g
  • Type of mounting
    With internal thread With accessories
  • Material of cylinder barrel
    Wrought aluminum alloy Smooth anodized
  • Additional moving mass per 10 mm stroke
    9 g
  • Note on materials
    RoHS-compliant
  • Piston rod material
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

177778 Related Documents

177778 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators

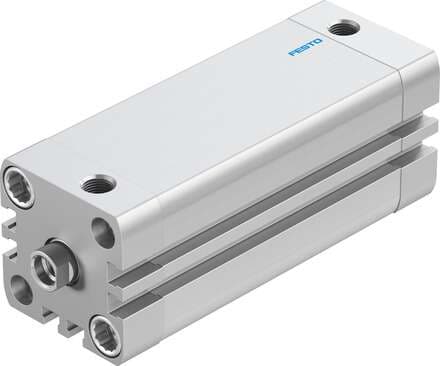

536287 on Powermatic Associates

536287

Festo

compact cylinder ADN-32-80-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 80 mm, Piston diameter: 32 mm, Piston rod thread: M8, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

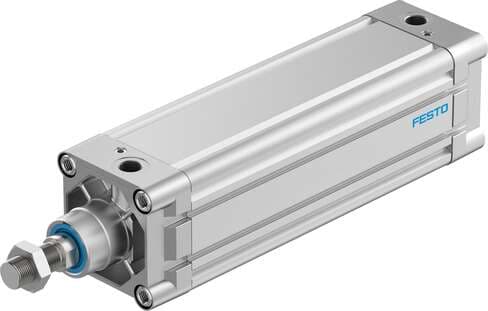

163403 on Powermatic Associates

163403

Festo

standards-based cylinder DNC-63-50-PPV-A As per ISO 15552, with profile cylinder barrel, for proximity sensing, with adjustable cushioning at both end positions. Stroke: 50 mm, Piston diameter: 63 mm, Piston rod thread: M16x1,5, Cushioning: PPV: Pneumatic

1 in stock

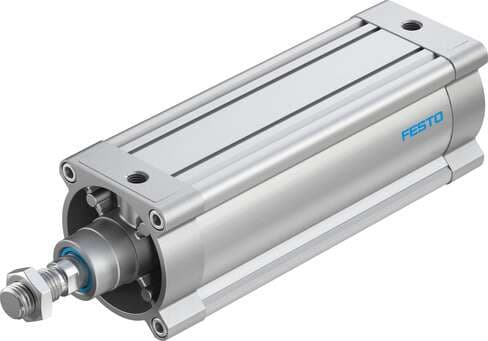

1804669 on Powermatic Associates

1804669

Festo

standards-based cylinder DSBC-125-250-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 250 mm, Piston diameter: 125 mm, Piston rod thread: M27x2, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: An

6 in stock

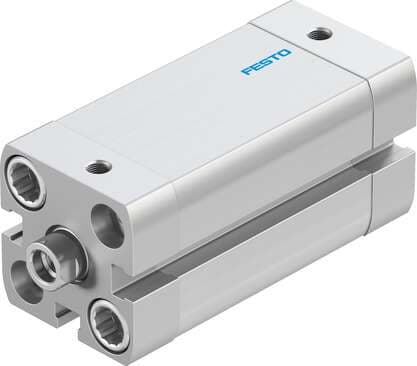

536248 on Powermatic Associates

536248

Festo

compact cylinder ADN-20-40-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke: 40 mm, Piston diameter: 20 mm, Piston rod thread: M6, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

1 in stock

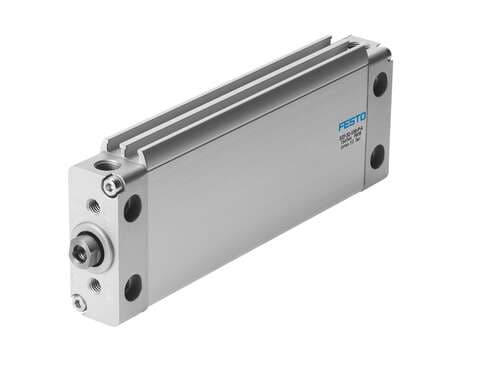

164043 on Powermatic Associates

164043

Festo

flat cylinder DZF-32-80-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 80 mm, Piston diameter: (* 32 mm, * Equivalent diameter), Max

1 in stock

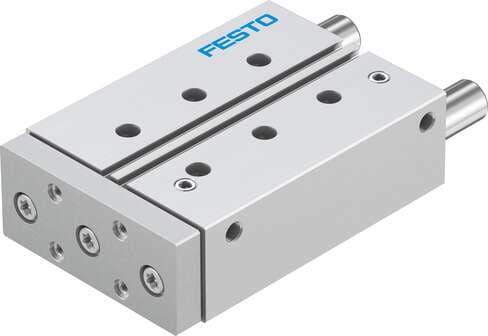

170860 on Powermatic Associates

170860

Festo

guided drive DFM-32-100-P-A-GF With integrated guide. Centre of gravity distance from working load to yoke plate: 50 mm, Stroke: 100 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both en

2 in stock

Manufacturer warranty

177778 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 177778 with other Pneumatic Actuators products

Cushioning

Variants

Corrosion resistance clas...

Additional weight per 10 ...

Cover material

Piston diameter

Piston rod end

Symbol

Operating medium

Theoretical force at 6 ba...

Selected product

177778
Backordered
177778
Festo

profile cylinder DNC-11/4"-2"-P per ISO 15552, with profile cylinder barrel, non-adjustable cushioni...

CushioningElastic cushioning rings/pad...

VariantsPiston rod at one end

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Additional weight per 10 mm stroke30 g

Cover materialDie-cast aluminum Coated

Piston diameter1 1/4"

Piston rod endExternal thread

Symbol00991227

Operating mediumCompressed air as per ISO 85...

Theoretical force at 6 bar, retracting415 N

163403
1 in stock
163403
Festo

standards-based cylinder DNC-63-50-PPV-A As per ISO 15552, with profile cylinder barrel, for proximi...

CushioningPneumatic cushioning, adjust...

Variants-

Corrosion resistance class (CRC)-

Additional weight per 10 mm stroke-

Cover material-

Piston diameter63 mm

Piston rod endExternal thread

Symbol00991235

Operating medium-

Theoretical force at 6 bar, retracting-

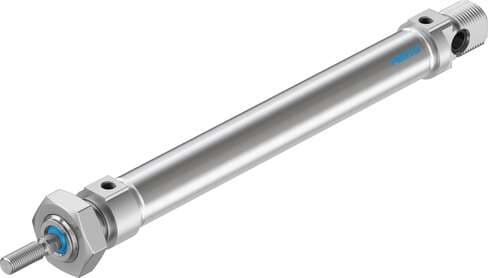

19232
